• Model NO.：22mm Clear Curtain Wall Glass
• Thickness：3-25mm
• Color：Clear, Blue, Green, Gray, Bronze, etc
• Transport Package：Strong Wooden Crates with Interlayer Paper
• Specification：CE, ASTM, CSI, etc
• Trademark：Northglass
• Origin：China
• HS Code：7007190090
• Production Capacity：10000m2,Week

Basic Info.

Model NO. 22mm Clear Curtain Wall Glass Thickness 3-25mm Color Clear, Blue, Green, Gray, Bronze, etc Transport Package Strong Wooden Crates with Interlayer Paper Specification CE, ASTM, CSI, etc Trademark Northglass Origin China HS Code 7007190090 Production Capacity 10000m2/Week

Product Description

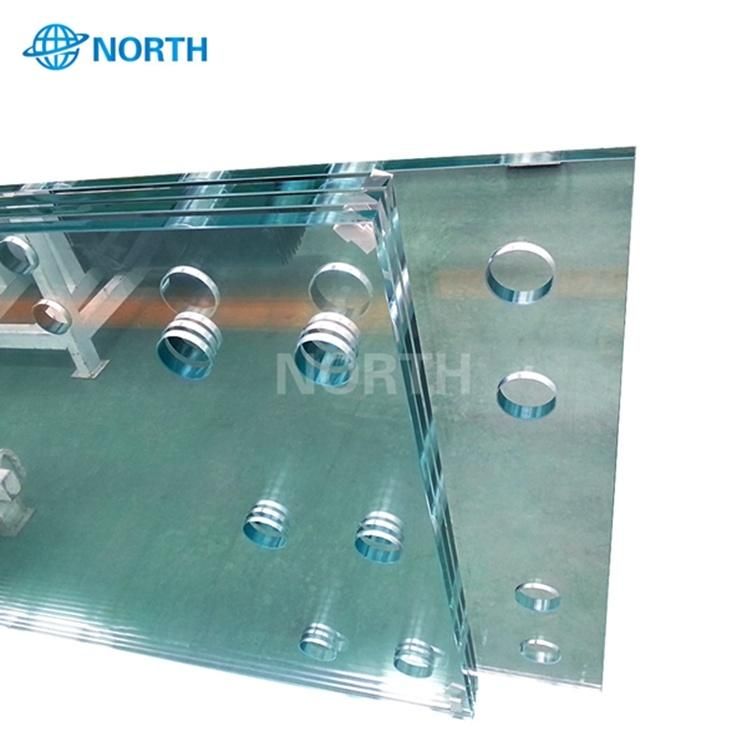

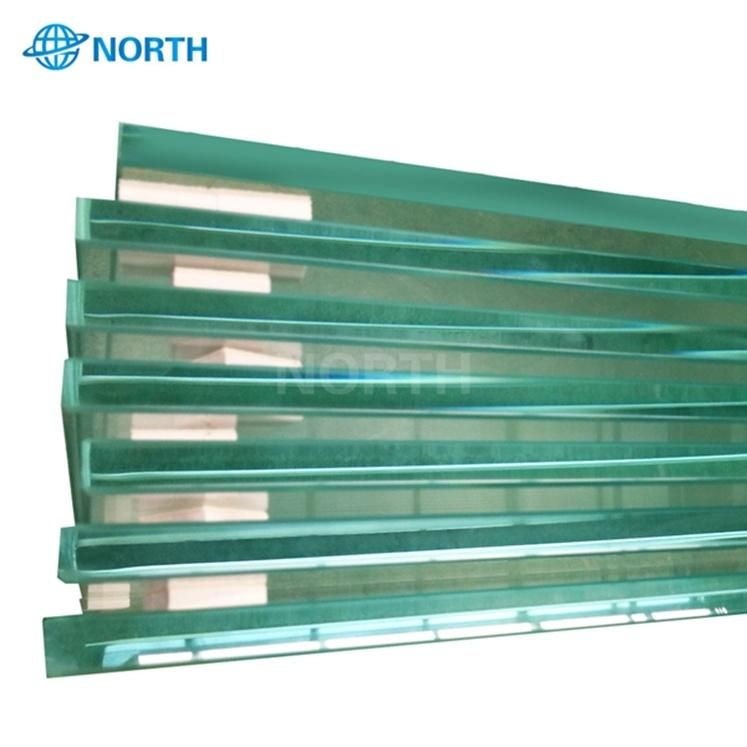

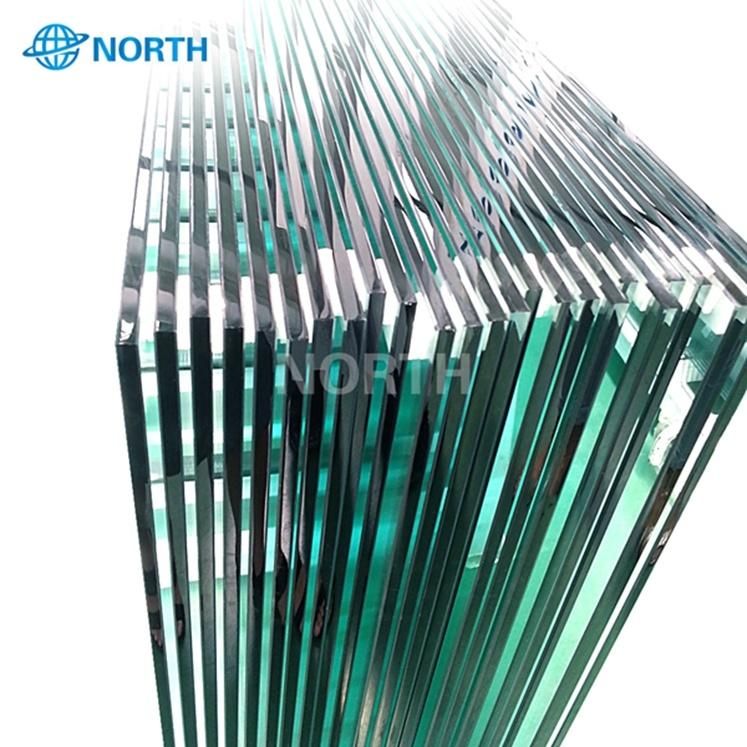

22mm Clear tempered glass for Curtain Wall

Specifications of 22mm curtain wall glass:
Thickness: 22mm
Color: Ultra clear or clear
Max specification: 3300x12800mm

Quality Standards:
GB 15763.2, Chinese standard.
EN 12150.1, European standard.
EN 12600, European standard.
ANSI Z97.1, American standard.


22mm curtain wall glass are made by forming compressive stress on the surface of the glass and heating the glass up to its intenerating temperature and then make the glass uniform cooling quickly. During the process of cooling, the exterior part of the glass is solidified because of the rapid cooling, while the interior part of the glass shrinks because of slow cooling, then forming compressive stress on the surface of the glass and tensile stress inside the glass, thus improving the intensity and heat stability of the glass.

Applications:
22mm curtain wall glass is safety glass, which is widely used as window glass, door glass, curtain wall glass, fencing glass in buildings, hotels, curtain wall, etc.

Considering the characteristics of 22mm curtain wall glass, glass size should be confirmed before making production. Once glass size is confirmed, 22mm curtain wall glass can not be made mechanical treatment any more, otherwise, toughened glass will be broken.

Competitive Advantage:
Safety performance: 22mm curtain wall glass will appearance hurtless obtuse angles when breakage.
Strength performance: Four times more than ordinary glass.
Heat stability performance: Three times more than ordinary glass, could bear the temperature change about 200° C.
Generously satisfy with different clients' requirement to meet different designs

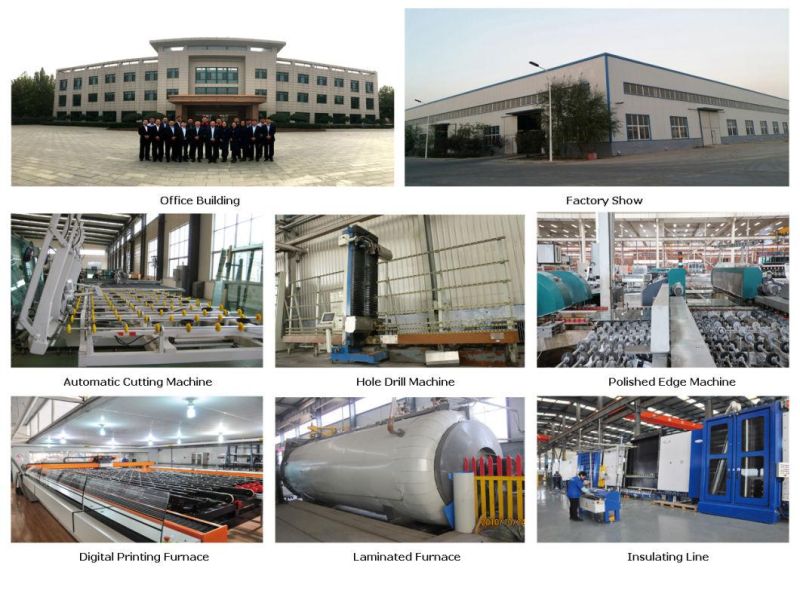

Factory situation:
