UV Curing Oven Tunnel Machine for Plastic and Glass UV Drying Machine
Shenzhen Eco Printing Co., LTD.- Movement Way：Combined
- Atomization：Pressure Atomization
- Flow：Cross Flow
- Heating Mode：Radioactive
- Material Status：Powder, Solution, Strap, Bulk
- Drying Medium：Inactive Gas, Superheated Steam, Effluent Gas, Air
Base Info
- Model NO.：YK-600UV
- Operation Pressure：UV Lamp
- Operational Method：Continuous
- UV Drying Products Size：600*100*2000mm
- Conveyor Belt Size：L2000* W600mm
- Belt Width：600mm
- UV System：2 PCS UV Lamps,2 Suits of UV Control Systems
- UV Lamp Power：2PCS*5.6kw,380V
- Conveyor Speed：0~20m,Min
- UV Lamp Lifetime：2000 Hours
- Wind Fan Wattage：500W,380V
- Motor Wattage：1000W,1p,380V
- Total Wattage：13kw
- Speed Change Ways：Continue
- Uvmachine Dimension：L*W*H2020*600*1450mm
- Gross Weight：300kg
- Package Size：L*W*H2150*800*1650mm
- Warranty：1 Year Warranty, Lifelong Maintenance
- Transport Package：Plywood Case
- Specification：Conveyor belt size W600mmx L2000mm
- Trademark：Eco
- Origin：China
- HS Code：841939090
- Production Capacity：500pieces,Month
Description
1.
Conveyor length :2000
2
Conveyor width:600mm
3
machine size: (L)2020x(W)600x(H)1450mm
4
5
6
7
Wind fan wattage: 500W/380V
motor wattage:1000W/1P/380V
8
Conveyor speed:0~20m/min,Hight of the entrance :120mm
9
Gross weight: 300 KG Package size:L*W*H2150*800*1650mm
Warranty
For all our machines, we provide one-year warranty.lifelong maintenance
Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost.

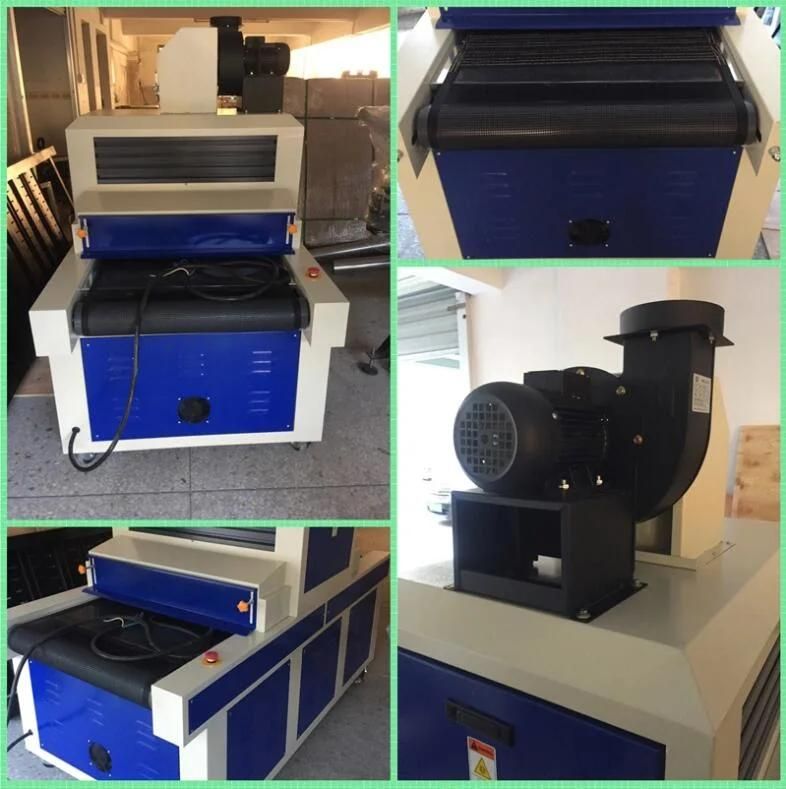

2.Machine details pics
3.Company Profile
Shenzhen Eco Printing Co.,LTD was established in 1999,with 20 years experience with a industry factory of research and development, production, sales, service integration of printing equipment ,which specializing in Pad Printing Machine,Screen Printing Machine,UV Curing Machine,IR Hot Dryer tunnel,Hot Stamping Machine,Flame Treatment Machine and Screen & Plate UV Exposure Machine etc.
We passed ISO-9001-2000 certification in 2000, and we are a member of SGIA and all of our industrial printers had passed CE standard.
we are the gold membership of made-in-china and got a huge credit all the world .
There are customers from 98 countries to visit our factory and we had a good cooperation.
4.Certificates
We passed ISO-9001-2000 certification in 2000, and we are a member of SGIA and all of our industrial printers had passed CE standard.
5.Packaging&Shipping
6.Contact details
Welcome to Dong guan, China, Welcome to Eco Printing
Customers are our friends, business integrity is our purpose
Hope our friendship last forever.
