Glass Door or No Frame Glass Door Semi-Automatic Sliding Door Closer (906-A)

Shen Zhen Hui Trade Industry Co., Ltd.
  • After-sales Service:24h
  • Warranty:36m
  • Material:Aluminum Alloy
  • Type:Sliding
  • Open Style:Sliding
  • Opening Type:Hydraulic Pressure

Base Info

  • Model NO.:906-A
  • Special Function:Soundproof
  • Color:Silver
  • Certification:ISO9001, CE
  • Position:Interior
  • Surface Finishing:Finished
  • Item Name:Semi Automatic Sliding Door
  • Brand Name:Caterly , FUJI
  • Close Style:Automatic
  • Packaging Details:Carton & Bubble
  • Opening Direction:Right Opening or Left Opening
  • Transport Package:Carton, Standard Package of Foreign Trade
  • Specification:Rail length 3000mm
  • Trademark:CATERLY or FUJI or N,A
  • Origin:Shenzhen China
  • HS Code:8479899790
  • Production Capacity:3000PCS,Year

Description

SPECIFICATIONS       Model906-A906-B Door Weight15 ~ 90kg50 ~ 80kg Door Width (Max.)~ 1500 mm~ 1,200mm Rail LengthL = 2,200mm / 3000mmL = 2,500mm / 2,800mm Controlling System Hydraulic Damper typeAir Damper type

Shenzhen Hui Trade Industry CO., ltd.
Manufacturera leading manufacturer of automatic sliding door, automatic swing door, automatic folding door, hospital door, break up system, sensors, control systems and relative accessories.

Caterly Automatic  Focus on developing, manufacturing and selling the simplest, safest and most reliable products. Products have  certificates of CE to meet strict requirements of different countries.Also been committed to highquality services. 3 Years warranty. During the guarantee period, maintenance services and wholes life technical support are  provided .

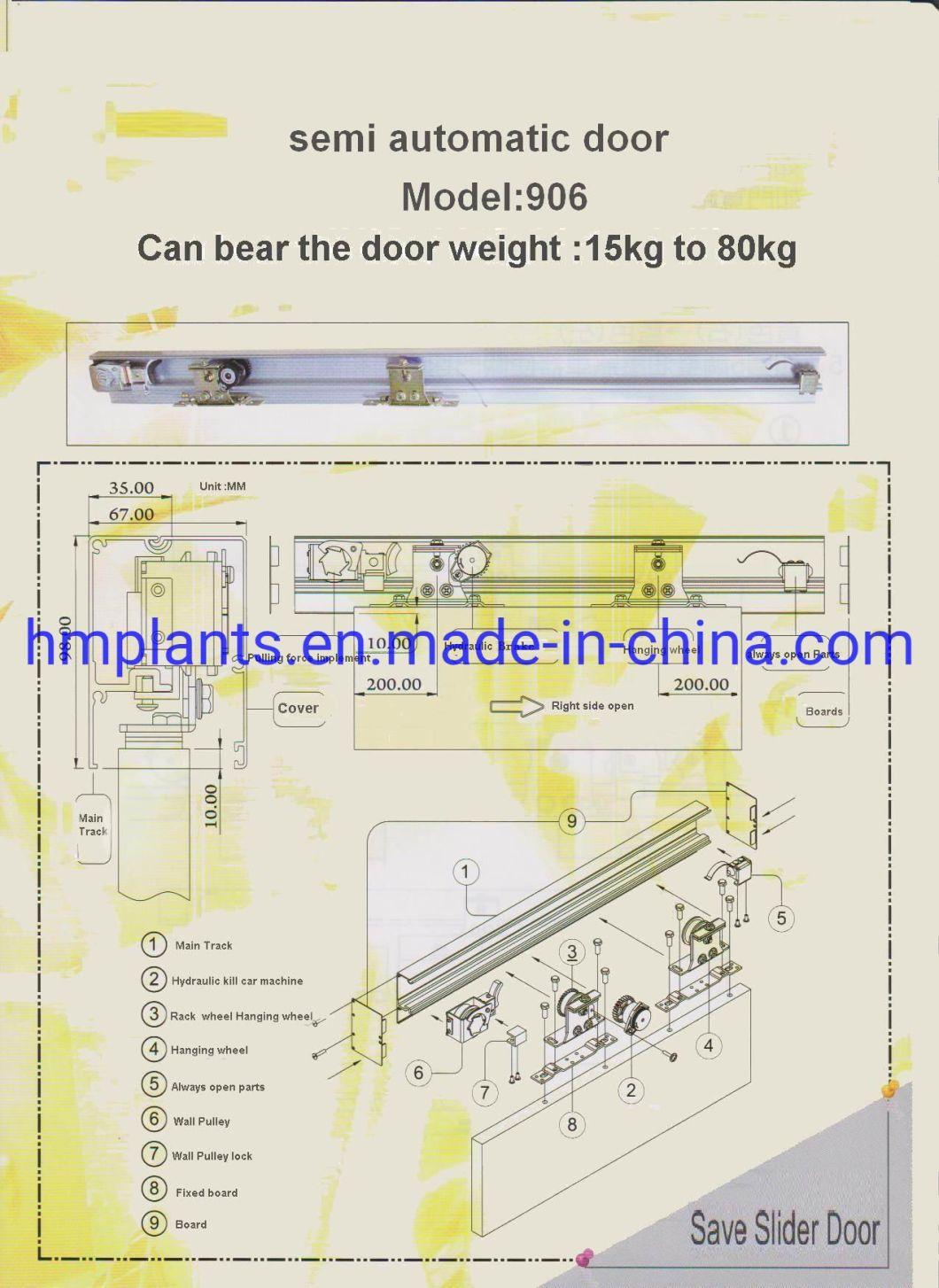

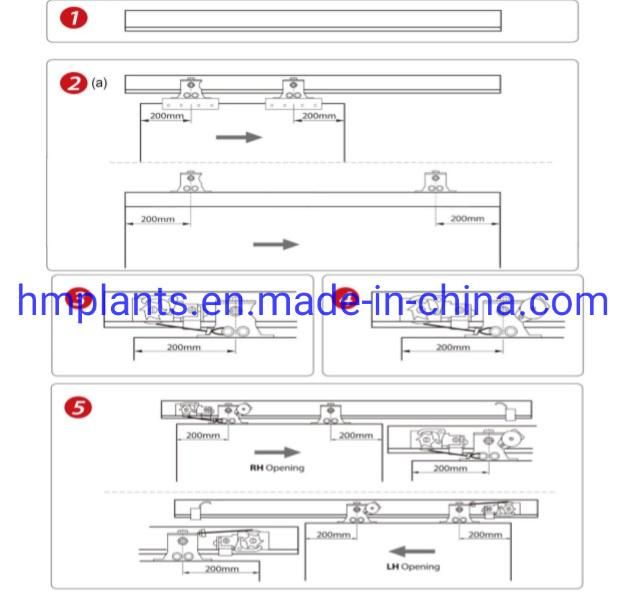

Installation instruction

I. Install aluminum rail horizontally .



2. Install roller on to top of the door .

    a) use fixing plate for timber door ,aluminum framed glass door .

    b) use aluminum hanger for frameless glass door .



3. Install spring by 2 screws 3/16-24x5/8" adjust spring tension

    for proper closing speed . Each adjustment no more than 1/2 turn .



4. Install Hydraulic Brake by 1 screw 1/4-24x3/8" per drawing 4 .

    Gear of Hydraulic Brake is designed with a one way bearing .

     The unit is present as RH opening when ex-factory .Gear must be reversely assembled for LH opening .



5. Adjust Hydraulic Brake for required closing speed .



6. For extra heavy door , raise open end 5mm highen than "close end " for easier closing .

   Glass Door or No Frame Glass Door Semi-Automatic Sliding Door Closer (906-A)

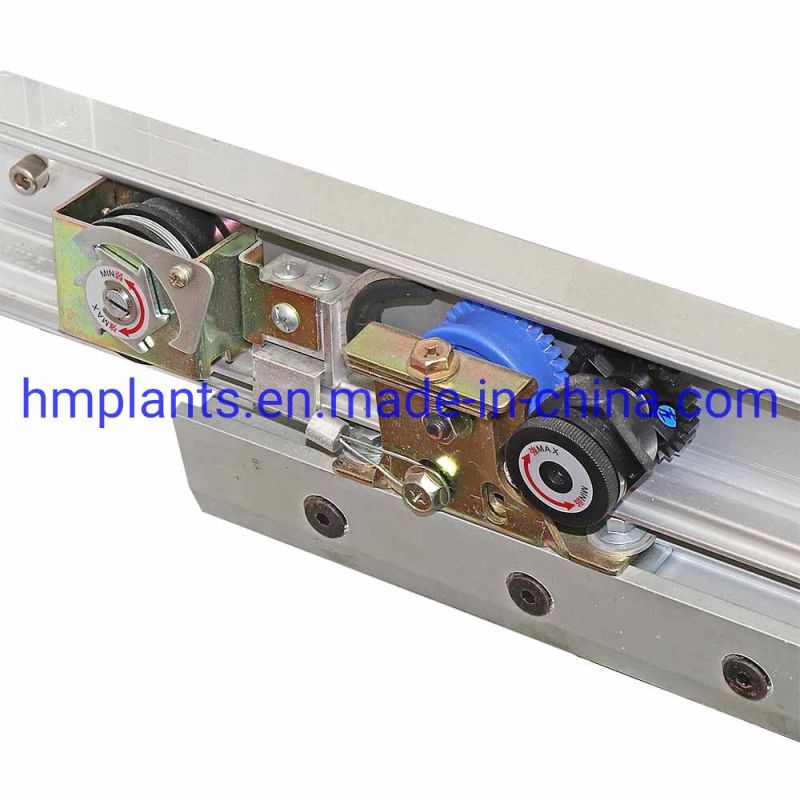

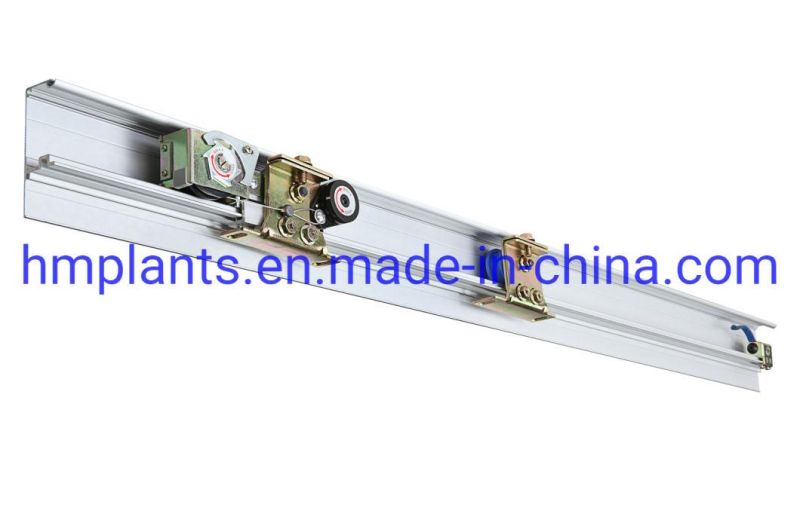

906-A details :

Glass Door or No Frame Glass Door Semi-Automatic Sliding Door Closer (906-A)
Glass Door or No Frame Glass Door Semi-Automatic Sliding Door Closer (906-A)

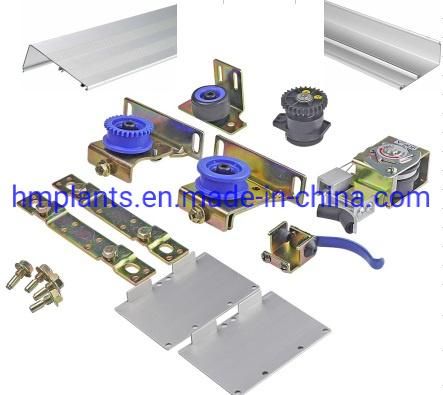

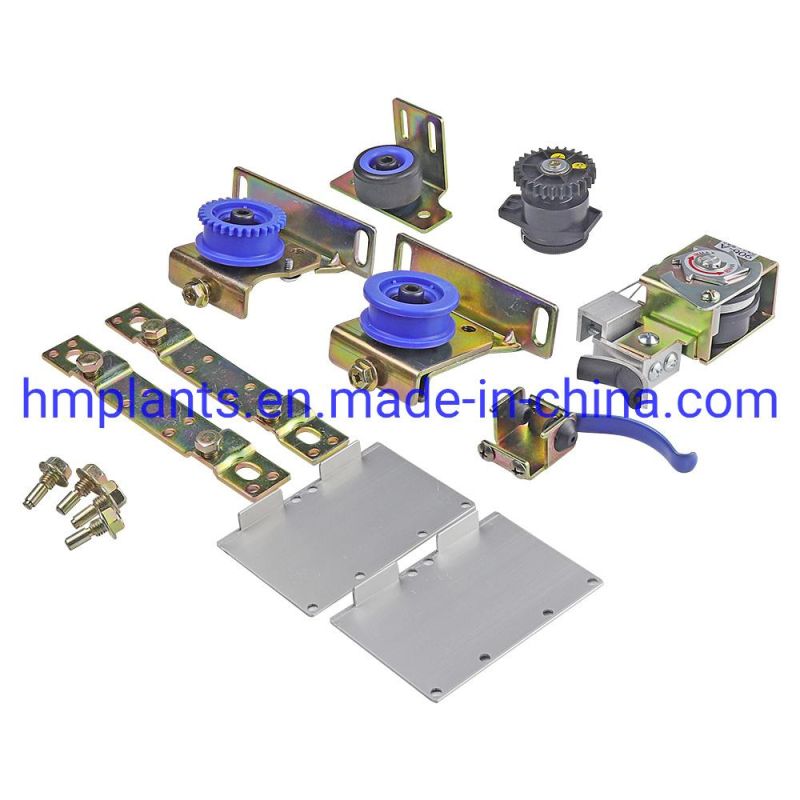

906-A KITS
Glass Door or No Frame Glass Door Semi-Automatic Sliding Door Closer (906-A)

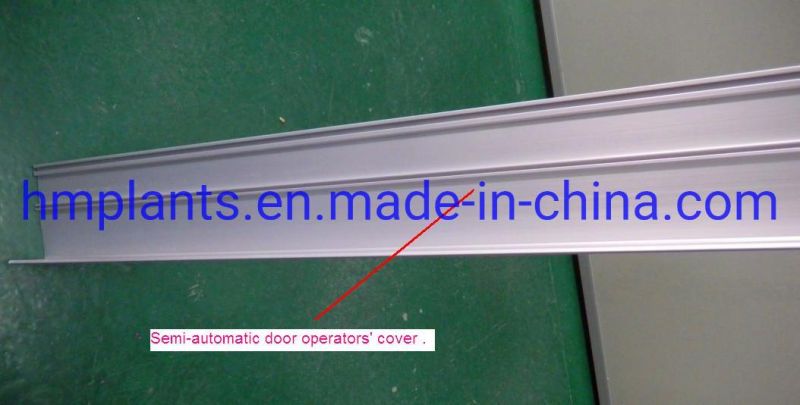

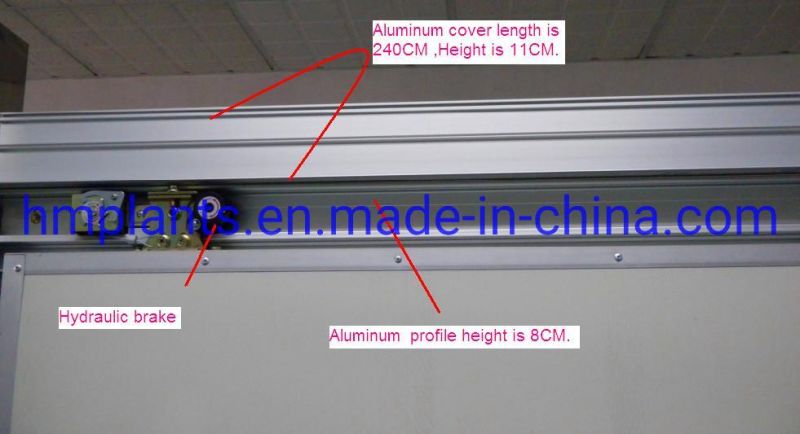

906-A RAIL & COVER ( Standard length 3000mm)
Glass Door or No Frame Glass Door Semi-Automatic Sliding Door Closer (906-A)

Glass Door or No Frame Glass Door Semi-Automatic Sliding Door Closer (906-A)
Glass Door or No Frame Glass Door Semi-Automatic Sliding Door Closer (906-A)
Glass Door or No Frame Glass Door Semi-Automatic Sliding Door Closer (906-A)
