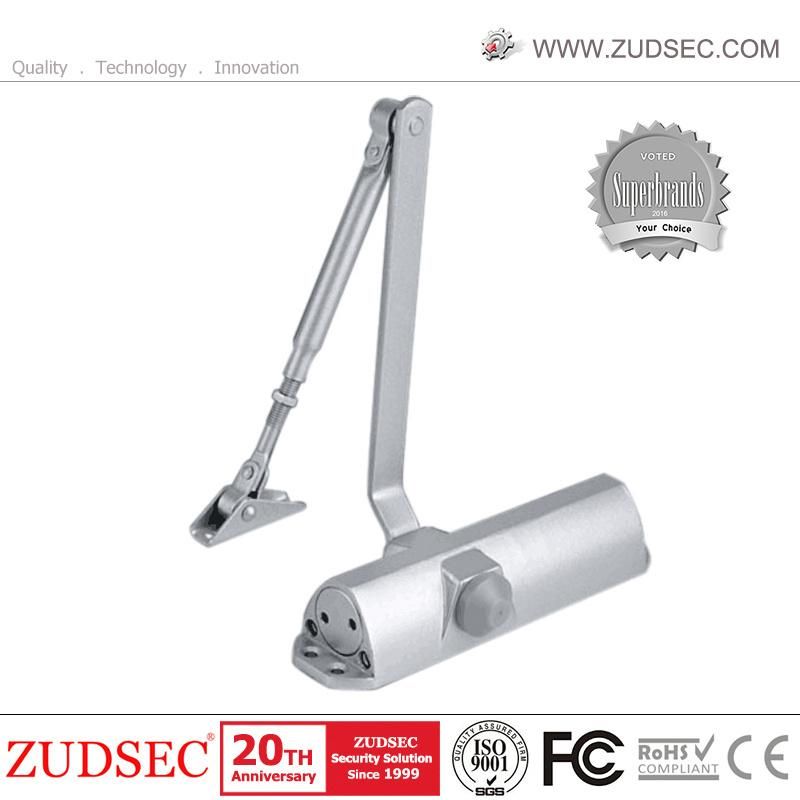

Automatic Spring Electric Grade Adjustable Hydraulic Cold Test Door Closer
Zuden Technology (HK) Co., Limited- Material：Aluminum Alloy
- Type：Outside-mounted
- Installation Type：Doorframe
- Function：Adjustable
- Standard：American Standard
- Remote Control：Without Remote Control
Base Info
- Model NO.：ZDDC-101
- Door Width：1200mm
- Door Weight：45~65Kg
- Usage：Market
- Color：Silver
- Product Name：Door Closer
- Mechanical Life：500000 Tested
- Door Opens up to：65~180 Degree
- Applicantion：Wooden Door, Steel Door, Fire Door, Glass Door or
- Max Open Angel：Max 180 Degree
- Warranty：1 Year
- Transport Package：Standard Packing
- Specification：CE, RoHS
- Trademark：ZUDSEC
- Origin：China
- HS Code：8205590000
- Production Capacity：5000000,Year
Description
Type
- Buffering function: after door opens up more than 65 degree, it can generate certain resistance, to avoid door opening up too wide and too fast to hit the wall, Resistance strength is adjustable.
- Time delay function for door closing: When door opens up to 65~180 degree, it can keep the door still, leaving space for going in and out, more comfortable.
- Speed of door closing and strength of locking door are adjustable: Below 90 degree the closing door speed can be between 3 seconds to more than 60 seconds.
- Strength of Door closing is adjustable: the strength for closing door from door closer is adjustable, so as to fits doors of different size and weight.
- Keep still function at 90 degree: after door opens up to 90 degree to 180 degree, it can keep the door as it is.

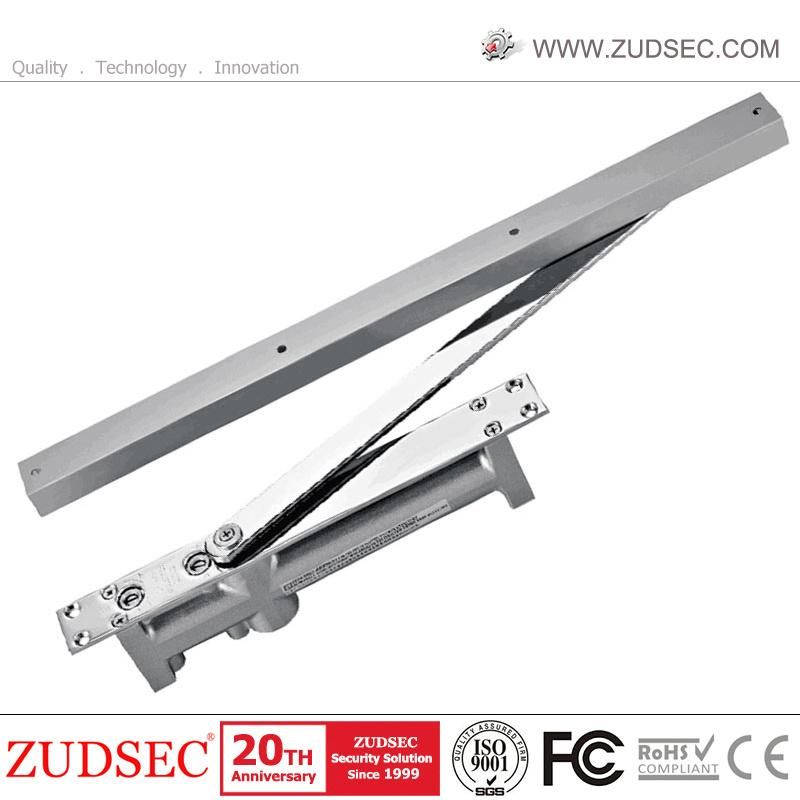

- Installation methord: Can be vertical, parallel, and sliding rail style, users may choose door closers of stop or non-stop type.
- Mechanical Life: 500000 tested
- Applicantion: Wooden door, Steel door, Fire Door, Glass Door or other doors.
- Suitable for door with specification:
- Width: 50mm~1500mm;
- Height: 2000~2400mm
- Weight: 15 ~150KG;
- Max Open Angel: Max 180 degree. - Packing
* ZDDC-201:
Packing size: 28*9*6.5cm Weight: 1.45kg
* ZDDC-103S:
Packing size: 31*9*7.5cm Weight: 1.85kg
* ZDDC-103:
Packing size: 31*9*7.5cm Weight: 1.8kg
* ZDDC-102:
Packing size: 27.5*9*6.5cm Weight: 1.3kg
* ZDDC-101:
Packing size: 23*8*6cm Weight: 1kg
* ZDDC-103L:
Packing size:29.2*9*8.8; Weight: 1.6kgs
* ZDDC-102L:
Packing size:24.6*8*6.8; Weight: 1.1kgs
* ZDDC-101L:
Packing size:24.6*8*6.8; Weight: 1kg
