• Model NO.：YO-Garage
• Certification：ISO9001, CE
• Position：Commercial
• Surface Finishing：Finished
• Application：Cold Room,Warehouse,Workshop
• Door Panel Thickness：40mm
• Shipment：7 Days After Deposit
• Transport Package：Export Wooden Case
• Specification：Max size 8m*8m
• Trademark：YUOU
• Origin：China
• HS Code：85308000
• Production Capacity：5000pieces,Year

Basic Info.

Model NO. YO-Garage Certification ISO9001, CE Position Commercial Surface Finishing Finished Application Cold Room,Warehouse,Workshop Door Panel Thickness 40mm Shipment 7 Days After Deposit Transport Package Export Wooden Case Specification Max size 8m*8m Trademark YUOU Origin China HS Code 85308000 Production Capacity 5000pieces/Year

Product Description

Commercial transparent sectional overhead door
 This product is suitable for car 4s shop, equipment showroom, shopping malls and other application where have the requirement of the transparent and perspective lighting.

Technical data

Max dimension	W12000mm,H8000mm.
Opening and closing speed	20cm-40cm/s
Power supply	220V±10%V,50/60HZ or   380V±10%V,50/60HZ
Door panel thickness	40mm/50mm/Back rib door
Optional Transparent Material	Polaycarbonate glass,Tempered Glass
Wind resistence	Beaufort scale11grade, 28m/s
Sound insulation level	<=60dB
Insulation level::	1.5 W/m°C
Water tightness	30 Pa
K valure	1.5w/M2.k
Thermal Conductivity	≤0.033W/m.k

Main Features:	a.UV proof b.Impact-resistance and buglar resistance c.All sections can be replaced easily

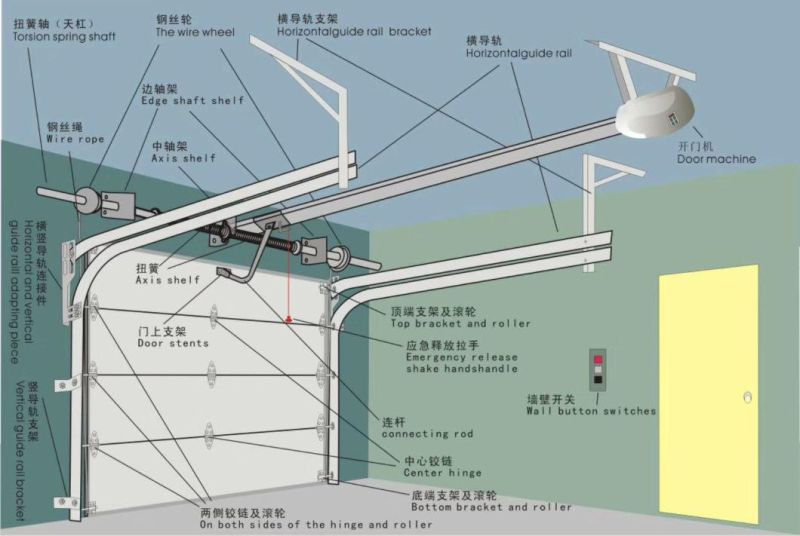

Balance System	a.Balance the weight of door  through the torsion spring b.Easily manual operation c.Reduce motor load greatly d.Prolong the service life of the motor
Safety device:	Airbag protection, door anti-fall device, wire rope anti-break protection device

Customized accoding to your ceiling height.

Door panel
(1) can also be made into a full-view full door panel
(2) Aluminum frames can be selected according to the building's selection of a variety of standard colors.
(3) Door frame: aluminum profile, profile specification can be selected by the size and wind resistance of the door panel.
Wood and a variety of profiles that are resistant to the grip.
(4) Transparent plate: It adopts German raw material polycarbonate pc board with thickness of 3mm-5mm. It can be selected according to the width of the door and the width of the window. It has excellent UV resistance and its impact resistance is 100 for tempered glass. Times.
Second, the operation mode: According to the construction conditions, there are many options (1), standard 90 degree up-sliding type.





2.Powder Coated Guide Rail :The color can be customized as your requirement.



3. Powder Coated Quality accessories.



6. Automatic-manual dual operation mode:

When power is off or faulty, it can be turned on or off by manually operating the chain. The balanced torsion spring system counteracts most of the tension at the opening. It can be opened with a little force by hand (in the range of 180N) or easily opened with a hand chain.

7. Good safety performance (standard):
Bottom airbag: encounter obstacles during the descent, stop immediately and run upwards
Fall protection: In the event of an accident, the wire rope breaks and the bottom anti-drop device will hold the track tightly, preventing the door from falling.



Export Packing stadard.

1.Multi-layer plastic bubble film pack all the parts carefully.
2.Carton box to make all the little parts safe and clearly.
3.Put all the packaged parts into the Export wooden box, and seal the wooden box.





FAQ

1. What's the payment details?
Deposit before production, and balance payment before shipment.

2. What's the delivery time?
7-15 days.

3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.

4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.

5. What's the MOQ?
We accept 1 set as sample order, but we prefer give your more discount.

6. How about the service?

A:Patient Pre-sale service:
Offter you the professional advice about the different door functions , and We are very happy to let you know all aboout our product,

B Strict packing standard and Professional and efficient export process.


C:Patient After-sale service:
We pay more attention about our product in customer factory. So we have already generate a whole set english version docements to help customer do the installtion work,
We can also provide the Patient installation guide and daily use guide by Internet or mobelphone.
