• Model NO.：YC1016
• Printing Speed：6-12sqm,H
• System Supported：Windowsxp32
• Transport Package：Plywood Cases
• Specification：1760*2500*1200mm
• Trademark：Ntek
• Origin：Shandong, China
• HS Code：8443322100
• Production Capacity：800 Sets,Year

Basic Info.

Model NO. YC1016 Printing Speed 6-12sqm/H System Supported Windowsxp32 Transport Package Plywood Cases Specification 1760*2500*1200mm Trademark Ntek Origin Shandong, China HS Code 8443322100 Production Capacity 800 Sets/Year

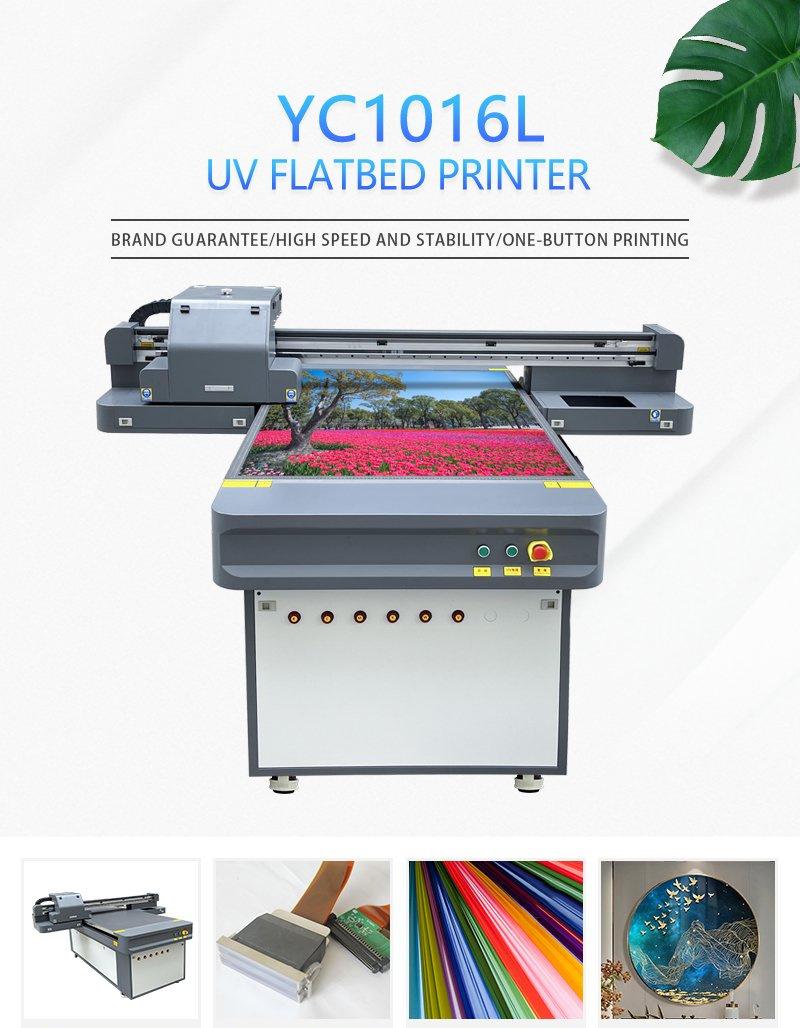

Product Description

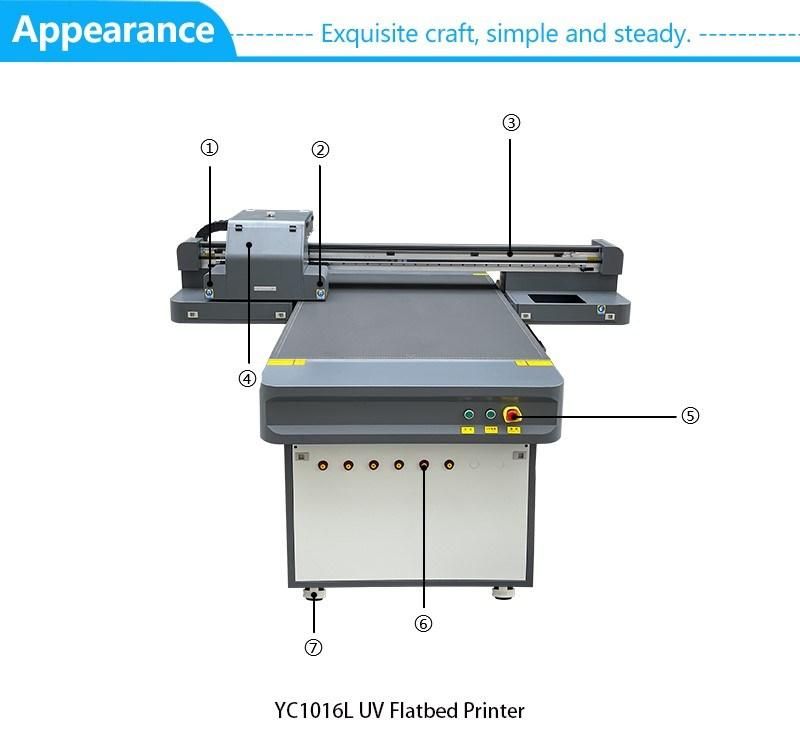

               Apperance                   Printhead                  Image Quality                 Application
                 exquisite craft,                DX7/DX5/I3200/XP600/TX80             Bright picture,                Wide range of applications to
              simple and steady             0 Printhead 2-4 units optional            fresh as before.               meet a variety of needs.
        1.UV LED Lamp                                     2.Anti-static,Anti-crash                        3.TAIWAN HIWIN guide rail
        4.Industrial Printhead                             5.Power switch area                            6.Ink level alarm system
        7.Universal Wheel
Product Specificatic

Product Model	YC1016
Printhead Technology	Drop-on demand piezo electric
Printhead control	Printhead voltage is software adjustable
Printhead Type	Printhead
Printhead Number	2-4
Ink Characteristics	UV Curing Ink
Ink reservoirs	Refillable on the fly while printing/1000ml per color
LED UV Lamp	more than 20000-hours life
Color Control	ICC based color,curves and density adjustment
Printhead arrangement	CMYKW varnish optional 3-12sqm/h
Cleaning System	Automatic Cleaning System, Automatic Dry-preventing System
Guide Rail	Taiwan HIWIN
Working Table	Vacuum Sucking
Printing Size	1000*1600mm
Print Interface	USB2.0/USB3.0/Ethernet Interface
Media Thickness	0-100mm
Print Resolution	360dpi, 720dpi, 1440dpi, 2160dpi
Life of printed image	3 years(outdoor),10years(indoor)
File Format	TIFF,JPEG,Postscript,EPS,PDF etc.
RIP Software	UltraPrint/ Photoprint
Power Supply	220V 50/60Hz(10%)
Power	3100W
Operation Environment	Temperature 20 to 30ºC,Humidity 40% to 60%
Machine Dimension	1760*2500*1200mm
Packing Dimension	1960*2700*1350mm
Weight	600kg
Warranty	12 months exclude the consumables

Main Features:

Japanese imported Ricoh GEN5 head for industrial production

CMYK W LC LM and varnish optional for glossy surface and high quality printing

Adopting dual-level precision screw rod on the both sides of Y axis synchronous running

Auto height detection technology to detect print media thickness automaticallyAutomatic anti-static design to avoid
dust ink drops flying

Advanced printhead anti-crash system to avoid the risk of a collision between printer carriage and material

Printing Materials:

  UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal

  panel, aluminium sheet, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated

  cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.

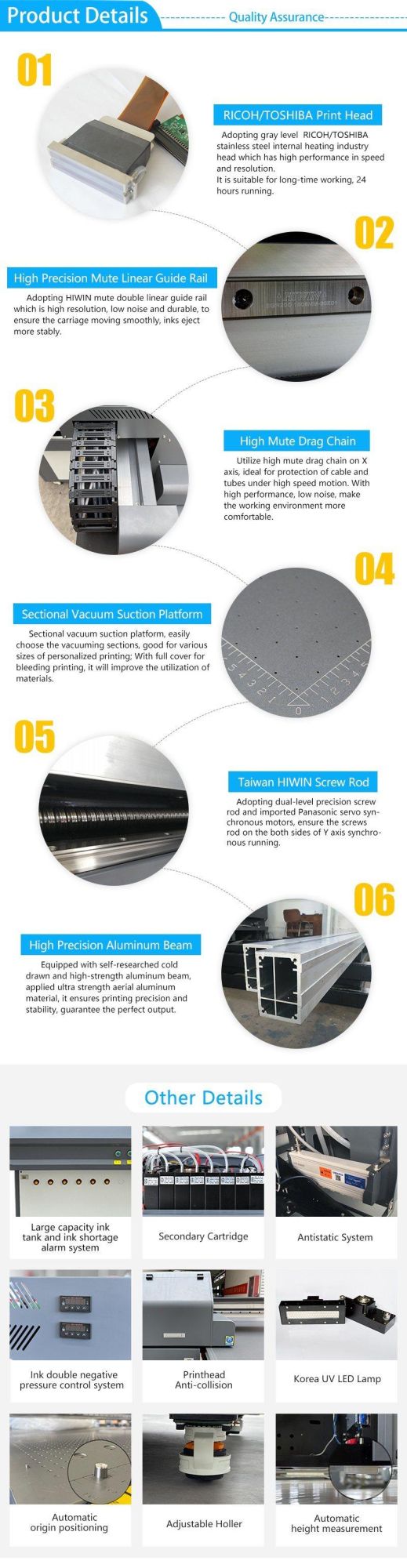

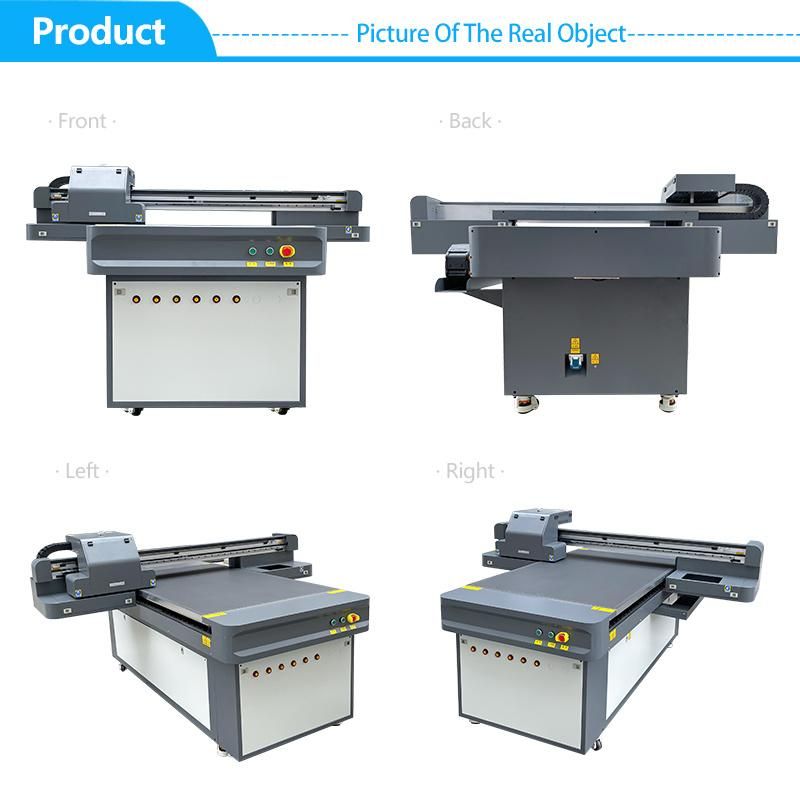

Product Details:

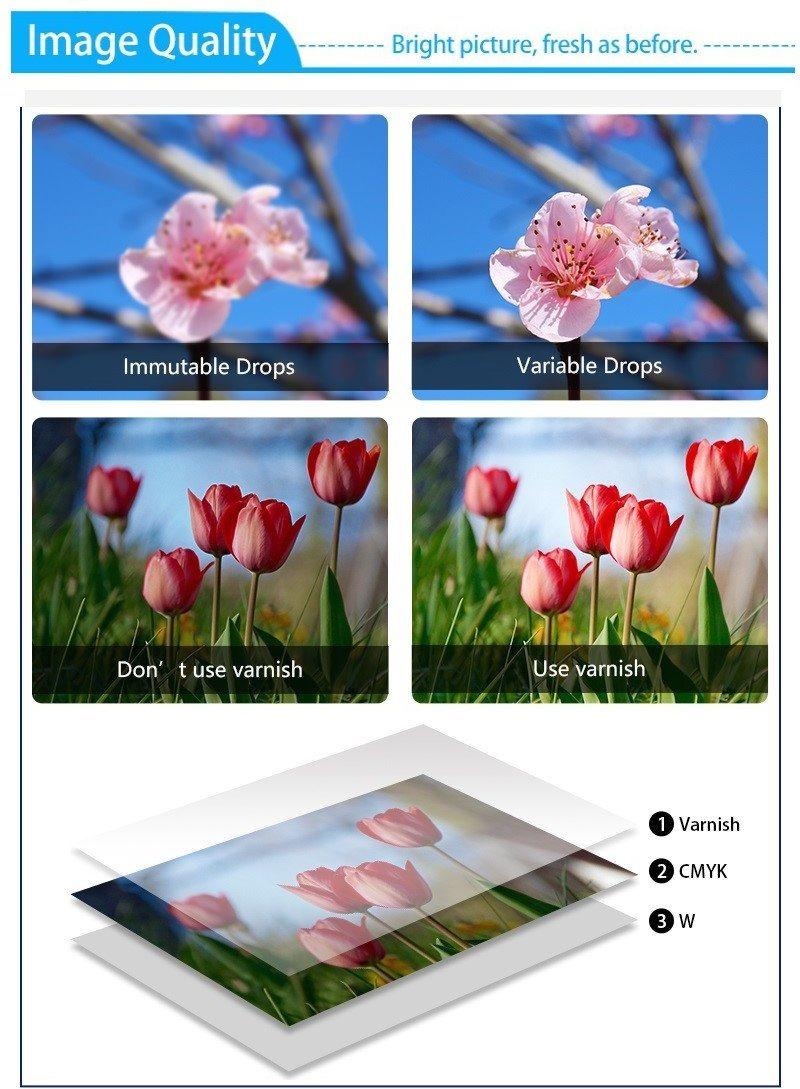

Printing Sample:                                           CMYK+W+V All three colors at once
The use of gloss oil makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of
the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect the coating,
make the product more durable.

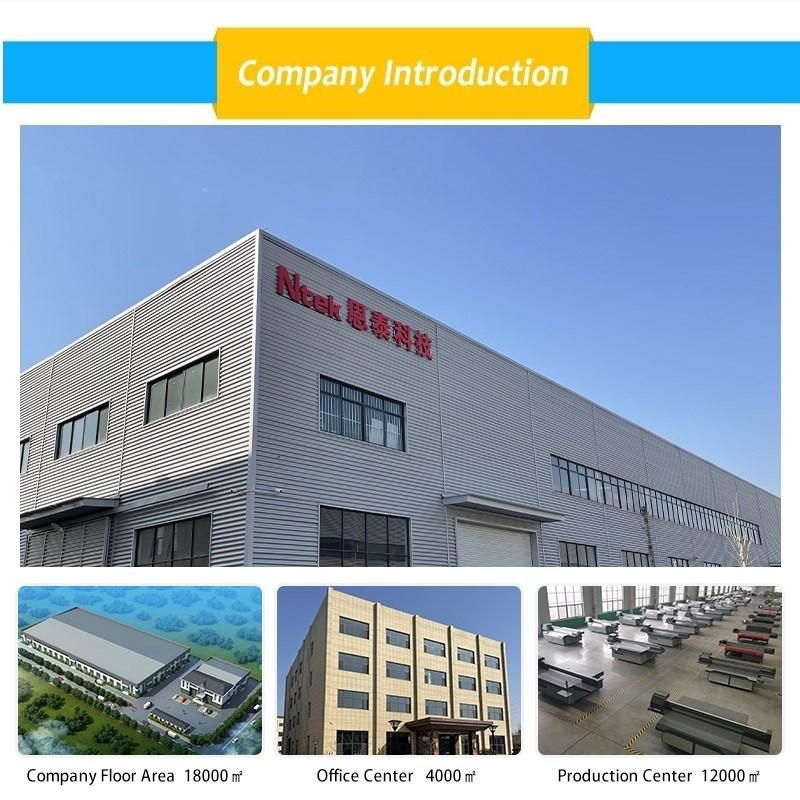

Company Information:
                                             Linyi Win-Win Machinery Co., Ltd
Linyi Win-Win Machinery Co.,Ltd is founded in 2009 in Shandong, China, is a high-tech machinery manufacturer, integrated with the
R&D,production, sales and maintenance in a whole. We mainly manufacture large format UV printers and OEM service is available.

We have 13 years experience in producing and exporting UV printers. The factory covers more than 20,000 square meters, with six
professional production lines, mainly produce UV flatbed printer, UV flatbed and roll to roll printer and UV hybrid printer. With high
quality, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc., and OEM service is available.

The UV printer can widely print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel, billboard, acrylic
panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such
as PVC, canvas, leather etc., and widely applied in decoration industry, glass industry, advertising&signs industry, leather, furniture and
ceramic industry etc. All our printers are with CE certificate.
FAQ:

 1.How long does the printing images will last outdoors and indoor?

      The printing images can last at least 3 years outdoors, and more than 10 years indoor.

 2. How about the stability and quality of the printing images?

      This UV flatbed printer can used to print on most of medias with best quality, durability,best result.

 3. How about the maintance and aftersales service?

      Our engineer available service overseas, and we can provide remote control service and online service for customers.

      But costomer has to be responsible for the accommodation and transportation costs of the technical staff.

 4.Are you a manufacturer or trade agent?

      We are the manufacturer of Uv flatbed printers.

 5. Is there any guarantee for this printer?

      Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the

      main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump,

      printhead, ink filter, and slide block since they are consumables.

 6. How can I install and start to use the printer?

      At first, you should read the users' manual to understand the machine and watch the video. After you get the

     machine, our technician will teach you how to install and use-machine by remote control via Teamviewer or Skype.

     Whenever you have questions to the machine, you can contact our technician or me.



 7.Can I get supplies and wearing parts from you?

      Yes, we provide all the wearing parts for our printers always and they are in stock.

 8. How will you achieve the warranty?

      If any electronics or a mechanical part is confirmed to be broken, Ntek should send new part  within 48hours by

     express like TNT, DHL, FEDEX etc to the buyer. An shipping cost should be  born by the buyer.

  9. What kinds of materials need premier before printing?

     Glass, ceramic, metel, acrylic, marble etc.
