Product Description

Gas Cylinder Storage Cabinet

Features:
The cabinet body is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed to effectively prevent rust; the front has an explosion-proof glass window; the internal uses a fixed chain to prevent the gas cylinder from falling;
Equipped with a professional alarm device and sound and light alarm system; with an automatic exhaust system, it will automatically exhaust the gas outside when it detects a gas leak.

Use of gas cylinder cabinet:
With the development of the times, the safe storage of gas cylinders has become increasingly important;
Standard storage of gas cylinders commonly used in schools, hospitals, chemical industries and other industries can play an important role in protecting the surrounding environment and personal safety.
The gas cylinder cabinet not only identifies the storage area of standardized gas cylinders, but also can be equipped with a corresponding alarm system. Even if the gas leaks, it can also function as an alarm to prevent and deal with the serious consequences of gas leakage in time;
After years of design summary and feedback from thousands of users, our gas cylinder cabinets have superior technology and guaranteed quality; they are more user-friendly and rational in use, and fully meet the needs of customers.

Alarm: A special alarm device can be selected.
The alarm device can identify: such as methane, acetylene, gas, hydrogen, etc.;

Fixed chain: A fixed chain is used inside to prevent the gas cylinder from tipping over.

Pedal: There is an adjustable pedal at the bottom of the cabinet to facilitate the loading and unloading of gas cylinders.

Automatic exhaust system: When the sensor in the cabinet detects a gas leak and alarms, the top wind will automatically work and exhaust the gas through the exhaust pipe to ensure personal safety in the work area.

Door panel: detachable hinges, with glass windows on the front...

Cabinet: 1mm thick Baosteel high-quality cold-rolled steel plate, pickled and phosphated, and the surface is electrostatically sprayed with epoxy resin to achieve the effect of acid and alkali resistance and rust prevention.

Product features: There are alarms and vents inside the gas cylinder cabinet, which realizes automatic alarm for air leakage and electric leakage, automatic timing exhaust and other functions: the gas cylinder cabinet is of all-steel structure, the cabinet body is made of high-quality cold-rolled plates, and the surface of the door panel The layer is sprayed with acid-resistant paint to prevent acid, alkali and rust.

1. External dimensions: 900×450×1900(W×D×H/mm);

3. Model: GUW02DS;
4. Capacity: put 2 40L standard gas cylinders;
5. Door type: double door, manual;
6. Door lock: mechanical door lock with key;
7. Window: with glass window;
8. Pedal: An adjustable pedal is set at the bottom of the cabinet to facilitate the loading and unloading of gas cylinders;
9. Material: The cabinet body is made of 1.0MM high-quality cold-rolled steel plate through shearing, stamping, bending, welding, spraying and other processes;
10. Coating: the surface of the cabinet is passivated by phosphoric acid and epoxy resin electrostatic spraying to ensure that the surface of the cabinet is clean and free from moisture, and is resistant to corrosion by air humidity;
11. Color: yellow/gray/red for choice;
12. Others: 110mm ventilation holes are opened on the top to facilitate external pipes; with flammable gas leakage detection and alarm functions;

1. Cabinet: 1.0mm thick Baosteel high-quality cold-rolled steel plate, pickled and phosphated, and the surface is electrostatically sprayed with epoxy resin to achieve the effect of acid and alkali resistance and rust prevention.
2. Door panel: It adopts detachable hinges, with windows on the front, and the windows are explosion-proof glass.
3. PASS hole: A PASS hole is provided on the side of the cabinet to ensure the gas flow in the cabinet.
4. Fixed chain: a fixed chain is used inside to prevent the gas cylinder from tipping over.
5. Pedal: An adjustable pedal is provided at the bottom of the cabinet to facilitate the loading and unloading of gas cylinders.
6. Handle: Use embedded high-strength handle.
7. Alarm: A special alarm device can be selected. The alarm device can identify: flammable gases such as methane, acetylene, coal gas, etc.
8. Sound and light alarm system: When the sensor in the cabinet detects a gas leak, it will automatically trigger the flashing of the red light and the roar of the alarm, and the air will be automatically exhausted at the same time.
9. Automatic exhaust system: When the sensor in the cabinet detects a gas leak and alarms, the top wind will automatically work and exhaust the gas through the exhaust pipe to ensure personal safety in the work area.

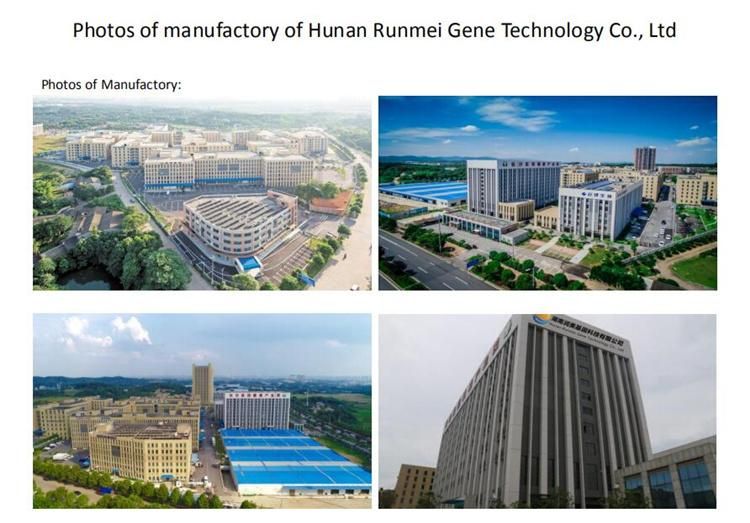

Company Profile:
Hunan Runmei Gene Technology Co., Ltd is a high-tech enterprise dedicated to the
development of the gene detection products and the construction of big data service
platforms led by a team of doctors at home and abroad. Our company's strategic goal is
to base on China and radiate the world, and to solve the pain points and difficulties of the
industry and create value for human beings as our corporate purpose. At present, our
company has completed the construction of product systems for pathogen biology fluoresence
quantitative PCR detection kits, pathogen biology ELISA detection kits and pathogen biology
immune colloidal gold detection kits.

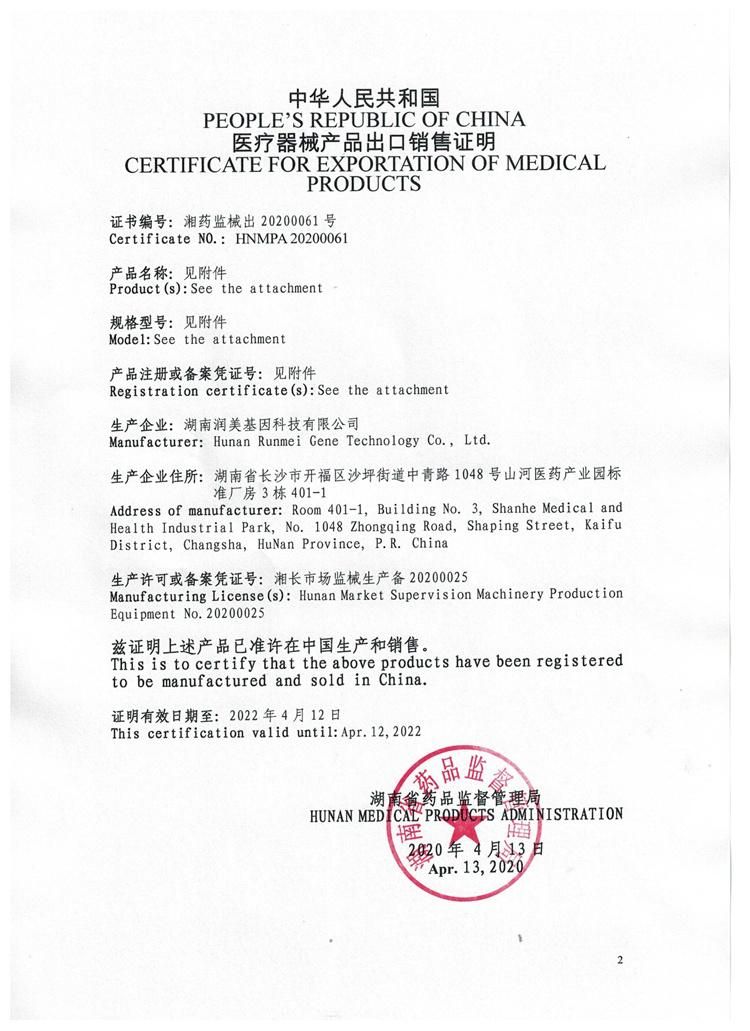

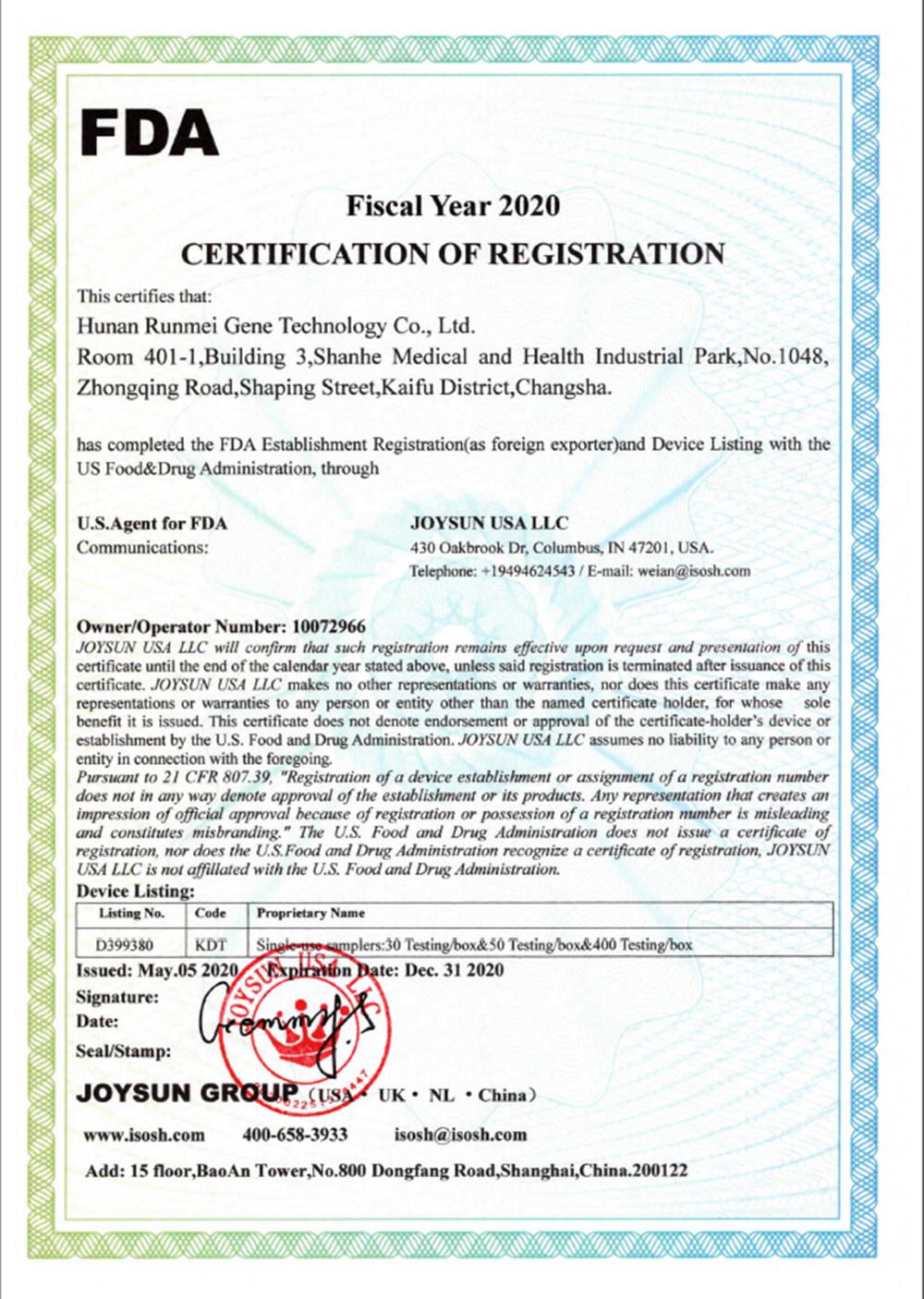

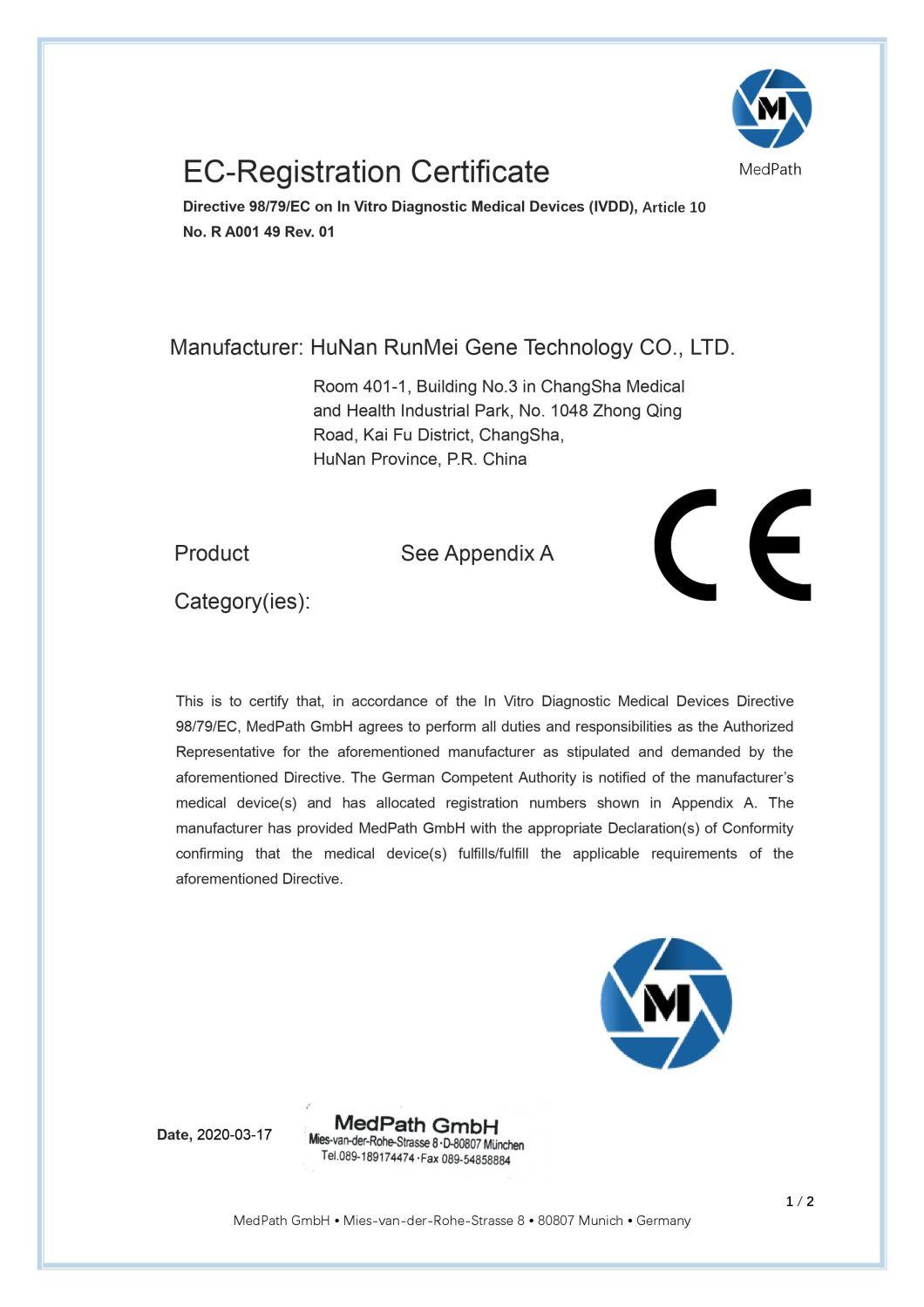

Certification:
