• Model NO.：CS12B4
• Temperature Type：Single-temperature
• Defrost Type：Auto Defrost
• Function：Cold Storage & Freezing, Cold Storage
• Certification：CE, RoHS, ISO, CCC, CB, SASO
• Transport Package：Exporting Standard Packing(Plywood)
• Trademark：OEM,ODM
• Origin：China
• Production Capacity：300000 PCS ,Year

TypeFour layers Right-angle cake showcaseModelCS9B4CS12B4CS15B4CS18B4Layer of tempered glass3 layers for front;other two layesHeating coilhaveHumidity controllerhaveFour-sided frame material for glass basenatural marble / 201 stainless steelDigital temp.controllerhaveColor of marblered/black/yellow/ white/blueQty.of glass door2222Qty.of shelf4444Thickness of insulation(mm)35353535Comprssor brandASPERA/SECOP/EMBRACOQty.of versatile wheels(pcs)4444N.W.(KG)250280300340G.W.(KG)280310330380Temp.(ºC)2~8Unit dimension(mm)900*685*18001200*685*18001500*685*18001800*685*1800Packing dimension(mm)1000*780*20001300*780*20001600*780*20001900*780*2000Loading qty.(pcs/40`Hc)36272218

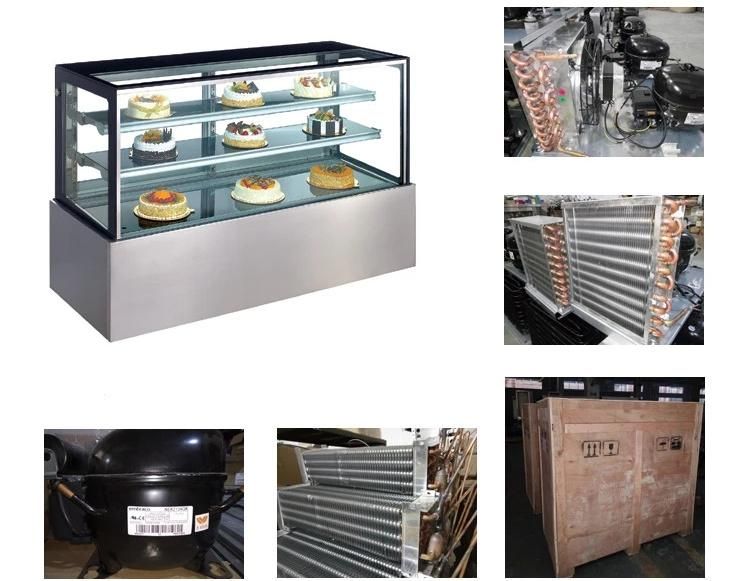

Commercial stainless steel or pure marble base cake refrigerator for pastry coffee

Feature:

1. World famous brand compressor,low noise,high efficiency,energy saving;
2 . EMB fan motor from Germany,high-power;
3. Three-layers of hollow insulating glass with Argon between glass,greater thermal insulation;
4. Automatic defrost,invisible heating coil in the middle of glasses,high efficiency demist;
5. High density foam:waterproof and rust-proof insulation;
6. Two digital temp.display at the front and back,intelligent precise temperature control with three temp.control point;
7. Excellent humidity control(75%-80%),maintain optimum moisture to keep cake fresh;
8. Fan forced ventilation,ensure the quality of cake;
9. Overall support for glass and shelf, more stable;
10.Movable shelves with the adjustable the height and inclination;
11.Full LED light for each deck,make cakes more attractive and the showcase more luxurious;
12.Sliding door in the back;
13.With versatile caster wheel and adjustable leg
14.Deluxe apperance with Marble base,four colors available for choice.Stainless steel base for option
15.Customized stainless steel and pure nature marble with different color
16.Wooden package with poly bag and foam.

Commercial stainless steel or nautre pure marble base cake refrigerator for pastry flower:

ModelQty.of shelf(pcs)Input power(W)N.W./G.W.(KG)Temp. (ºC)Net cap.(L)Unit dimension (mm)Packing dimension (mm)40`HQ (pcs)CS9B11600200/2302~8230900*685*9501000*780*115072CS12B11690230/2602~83201200*685*9501300*780*115054CS15B11800260/2902~84001500*685*9501600*780*115044CS18B111000300/3402~85001800*685*9501900*780*115036CS9B22560230/2602~8280900*685*12201000*780*142052CS12B22709250/2802~83801200*685*12201300*780*142036CS15B22905280/3102~84801500*685*12201600*780*142030CS18B22995300/3402~86001800*685*12201900*780*142026CS9B33450250/2802~8390900*685*14001000*780*160050CS12B33799270/3002~85101200*685*14001300*780*160036CS15B331115300/3302~86601500*685*14001600*780*160029CS18B331222330/3702~88001800*685*14001900*780*160025CS9B44960250/2802~8560900*685*18001000*780*200036CS12B441100280/3102~87601200*685*18001300*780*200027CS15B441308300/3302~89601500*685*18001600*780*200022CS18B441630340/3802~811901800*685*18001900*780*200018CS9A22563200/2302~8290900*685*12201000*780*142052CS12A22672230/2602~84101200*685*12201300*780*142036CS15A22920260/2902~85101500*685*12201600*780*142030CS18A221100300/3402~86201800*685*12201900*780*160026CS9A33660240/2702~8300900*685*14001000*780*160050CS12A33779260/2902~84001200*685*14001300*780*160036CS15A331000290/3202~85001500*685*14001600*780*160029CS18A331100310/3502~86001800*685*14001900*780*160025

Upright display cooler,vertical glass door refrigerator,flower cooler:

ModelNet cap. (L)Qty.of door (pcs)Qty.of shelf (pcs)Temp. (ºC)N.W./G.W. (KG)Unit dimension (mm)Packing dimension (mm)40`HQ (pcs)FG308A30813044~8100/130610*590*1830620*600*203048FG418S4181404110/140650*650*1850750*750*205048FG418A4181404110/140650*650*1850750*750*205048FG608A6082304205/230920*800*1850960*850*205028FG828A8283108270/3101220*650*18501260*690*205027

WOODEN BOX PACKING

FAQ:

1. Q: How about the quality?A: We use all the best high quality raw material including the international famous compressor and fan motor, copper for evaporator and condenser, three-layers tempered glass with heating coil, nature marble etc.
2. Q: Which style should we choose?
A: We have many models for your choice. Please tell us the application, materials, output and pressure all what you wanted, then we'll introduce.
3. Q: Can we have customized model?
A: Yes. We can make the customized machine according to your correct requirements.
4.Q: What should we do if there are some problems with the machine?
A: You can refers to the Operate Instruction or contact us for online instruction. Also, our engineers are available to service overseas.
5.Q: What is the delivery time?
A: 2 weeks for sample model, 30 days for customized model. It depends for mass production.
6.Q: How about the package?
A: We have plywood case to protect the machine from damage during the long-distance delivery.
7.Q :How about the payment?
A: TT, 30% deposit + 70% before shipment.
