• Model NO.：YC6090
• Printing Speed：3-12sqm,H
• System Supported：Windowsxp32

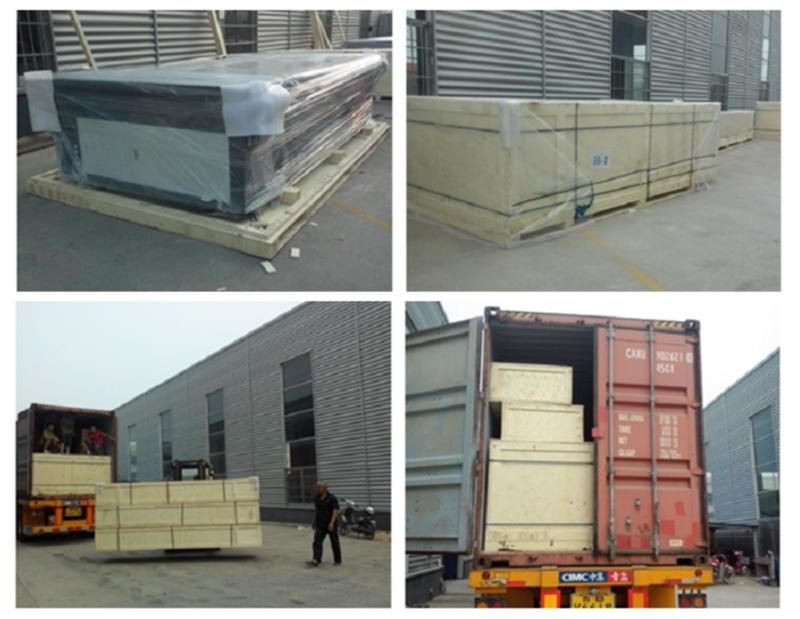

• Transport Package：Plywood Cases
• Specification：1060*2100*1160mm
• Trademark：Ntek
• Origin：Shandong, China
• HS Code：8443322100
• Production Capacity：800 Sets,Year

Product Model

YC6090

Printhead Technology

Drop-on demand piezo electric

Printhead Control

Printhead voltage is software adjustable

Printhead Type

EPSON DX5/DX7/XP600/TX800/RICOH GH2220

Printhead Number

2/3(EPSON) 6/8 heads(GH2220)

Ink Characteristics

UV Curing Ink

Ink Reservoirs

Refillable on the fly while printing/1000ml per color

LED UV Lamp

More than 20000-hours life

Color Control

ICC based color, curves and density adjustment

Printhead Arrangement

CMYKW varnish optional        3-12sqm/h

Cleaning System

Positive Pressure Cleaning

Guide Rail

Taiwan HIWIN

Working Table

Vacuum Sucking/ Glass Table

Printing Size

900*600mm

Print Interface

USB2.0

Media Thickness

0-100mm, higher can be customized

Print Resolution

360*1080dpi, 720*720dpi, 720*1080dpi,720*1440dpi

Life of Printed Image

3 years(outdoor),10years(indoor)

File Format

TIFF,JPEG,Postscript3,EPS,PDF etc.

RIP Software

UltraPrint/ Photoprint optional

Power Supply

220V 50/60Hz(10%) >15A

Powder

1100W

Operation Environment

Temperature 20 to 28ºC, Humidity 40% to 60%

Machine Dimension

1060*2100*1160mm

Packing Dimension

1260*2250*1360mm

Weight

 300kg

Warranty

12 Months exclude the consumables



Customer Evaluation:

 1.How long does the printing images will last outdoors and indoor?

      The printing images can last at least 3 years outdoors, and more than 10 years indoor.

 2. How about the stability and quality of the printing images?

      This UV flatbed printer can used to print on most of medias with best quality, durability,best result.

 3. How about the maintance and aftersales service?

      Our engineer available service overseas, and we can provide remote control service and online service for customers.

      But costomer has to be responsible for the accommodation and transportation costs of the technical staff.

 4.Are you a manufacturer or trade agent?

      We are the manufacturer of Uv flatbed printers.

 5. Is there any guarantee for this printer?

      Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the

      main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump,

      printhead, ink filter, and slide block since they are consumables.

 6. How can I install and start to use the printer?

      At first, you should read the users' manual to understand the machine and watch the video. After you get the

     machine, our technician will teach you how to install and use-machine by remote control via Teamviewer or Skype.

     Whenever you have questions to the machine, you can contact our technician or me.

 7.Can I get supplies and wearing parts from you?

      Yes, we provide all the wearing parts for our printers always and they are in stock.

 8. How will you achieve the warranty?

      If any electronics or a mechanical part is confirmed to be broken, Ntek should send new part  within 48hours by

     express like TNT, DHL, FEDEX etc to the buyer. An shipping cost should be  born by the buyer.

  9. What kinds of materials need premier before printing?

     Glass, ceramic, metel, acrylic, marble etc.
