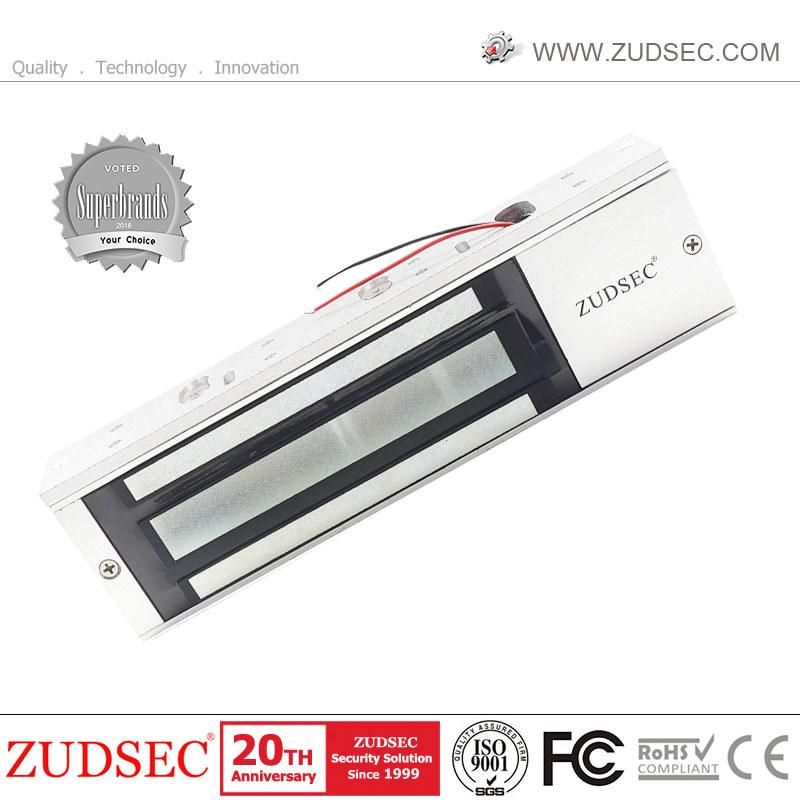

Wholesale 280kg 600lbs LED Timer Electromagnetic Lock Cabinet Sliding Electric Magnetic Door Strike Electric Drop Bolt Em Lock
Zuden Technology (HK) Co., Limited- Customized：Customized
- Certification：RoHS, CCC, FCC, CE
- Application：Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Company, Garage, Community
- Working Principle：Electronically Controlled Lock
- Function：Fail -Safe
- Type：Electromagnetic Lock
Base Info
- Model NO.：ZDL-280
- Holding Force：280kgs(600lbs) ,350kgs(800lbs),180kgs(300lbs)
- Fail-Safe Type：Power-on to Lock, Power-off to Open
- Voltage：12V, or 24VDC
- Current：12V,500mA or 24V,250mA
- Signal Output：No ,Nc ,COM
- Surface Temp：≤+20ºC
- Delay Setting：0~20s
- Finishes for Magnetic：Zinc
- Finishes for Armature：Zinc
- Suitable for：Wooden Door , Glass Door ,Metal Door , Fireproof D
- Weight：2.1kg
- Suitable Humidity：0~90%
- Operating Temp：-10~+55ºC(14-131f)
- Material：High Strength Material
- Housing：Anodized Aluminum
- Transport Package：Standard Packing
- Specification：CE, RoHS
- Trademark：ZUDSEC
- Origin：China
- HS Code：8301400000
- Production Capacity：5000000,Year
Description
- Voltage: 12V, or 24VDC(customizable)
- Power consumption: 12V/320mA; 24V/250mA(customizable) for ZDL-180/280/350
12V/500mA; 24V/240mA for ZDL-500 - Surface mounted
- Signal output:NO /NC /COM, NO output when locking and unlocking the NC output
- Red indicates the door is unlock,Green indicates the door is lock
- Delay setting: 0-20 seconds adjustable
- Surface Temp: ≤+20°C
- Operating Temp: 10~+55°C(14-131F)
- Suitable Humidity: 0~90%
- ZDL-180:
Dimension:168×38×23mm(Body); 140×33×11mm(Magnet)
Packing: 22.3*8*3cm, Weight: 0.95Kgs
ZDL-280:
Dimension:250×48×27mm(Body); 183×38×12mm(Magnet)
Packing size: 26.5*6.5*6cm, Weight: 1.9Kgs
ZDL-350:
Dimension:240×56×29mm(Body); 160×44×11mm(Magnet);
Packing size: 26.5*6.5*6cm, Weight: 2.1Kgs
ZDL-500:
Dimension:265×73×41mm(Body), 185×62×13mm(Magnet);
Packing size: 28.5*8*7.5cm, Weight: 4.3 Kgs
