• Model NO.：YC2513H
• Usage：Glass, Ceramic, Acrylic, Wood, PVC, Ect...
• Automatic Grade：Automatic
• Printing Interface：USB2.0
• Printing Speed：15-30sqm,H
• System Supported：Win7,Win10
• Transport Package：Plywood Cases
• Specification：4400*2100*1400mm
• Trademark：Ntek
• Origin：Shandong, China
• HS Code：8443322100
• Production Capacity：800 Sets,Year
• Package size per unit product：390.00cm * 185.00cm * 143.00cm
• Gross weight per unit product：800.000kg

Basic Info.

Model NO. YC2513H Usage Glass, Ceramic, Acrylic, Wood, PVC, Ect... Automatic Grade Automatic Printing Interface USB2.0 Printing Speed 15-30sqm/H System Supported Win7/Win10 Transport Package Plywood Cases Specification 4400*2100*1400mm Trademark Ntek Origin Shandong, China HS Code 8443322100 Production Capacity 800 Sets/Year

Packaging & Delivery

Package size per unit product 390.00cm * 185.00cm * 143.00cm Gross weight per unit product 800.000kg

Product Description

Main Features:

  Equipped with Japanese EPSON heads

  CMYK and white ink color printing

  White ink circulation and mixing functions

  Water circulating cooling system for UV LED lamps

  Taiwan HIWIN guide rail for stable working

  Customized bridge for accurate and stable working

  Easy and convenient operation

  New updated printer with higher quality and faster speed

Printing Materials:

  UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal

  panel, aluminium sheet, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated

  cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.


Product Specificati

Product Model	YC2513H
Printhead Technology	Drop-on demand piezo electric
Printhead control	Printhead voltage is software adjustable
Printhead Type	EPSON DX5/DX7/XP600/GH2220
Printhead Number	2/3/4/6/8
Ink Characteristics	UV Curing Ink
Ink reservoirs	Refillable on the fly while printing/1000ml per color
LED UV Lamp	more than 20000-hours life
Color Control	ICC based color,curves and density adjustment
Color and Speed	CMYKW Varnish optional    3-12sqm/h
Cleaning System	Automatic Cleaning System, Automatic Dry-preventing System
Guide Rail	Taiwan HIWIN
Working Table	Vacuum Sucking
Printing Size	2500*1300mm
Print Interface	USB2.0
Media Thickness	0-100mm
Print Resolution	360dpi, 720dpi,1440dpi,2160dpi
Life of printed image	3 years(outdoor),10years(indoor)
File Format	TIFF,JPEG,Postscript,EPS,PDF etc.
RIP Software	UltraPrint/ Photoprint optional
Power Supply	220V 50/60Hz(10%)
Power	1100W
Operation Environment	Temperature 20 to 30ºC,Humidity 40% to 60%
Machine Dimension	3965*2080*1260mm
Packing Dimension	4170*2280*1400mm
Weight	800kg
Warranty	12 months exclude the consumables

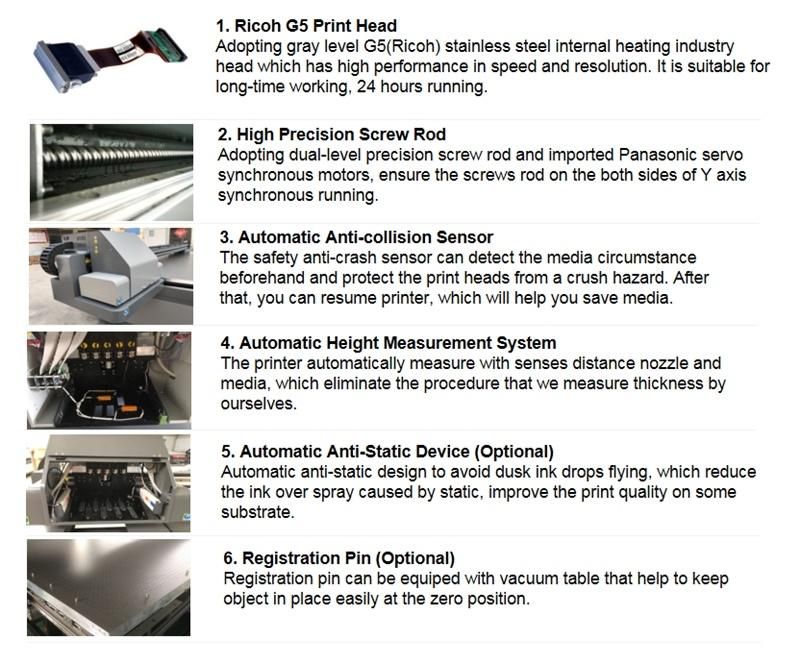

Product Details:






Printing Sample:

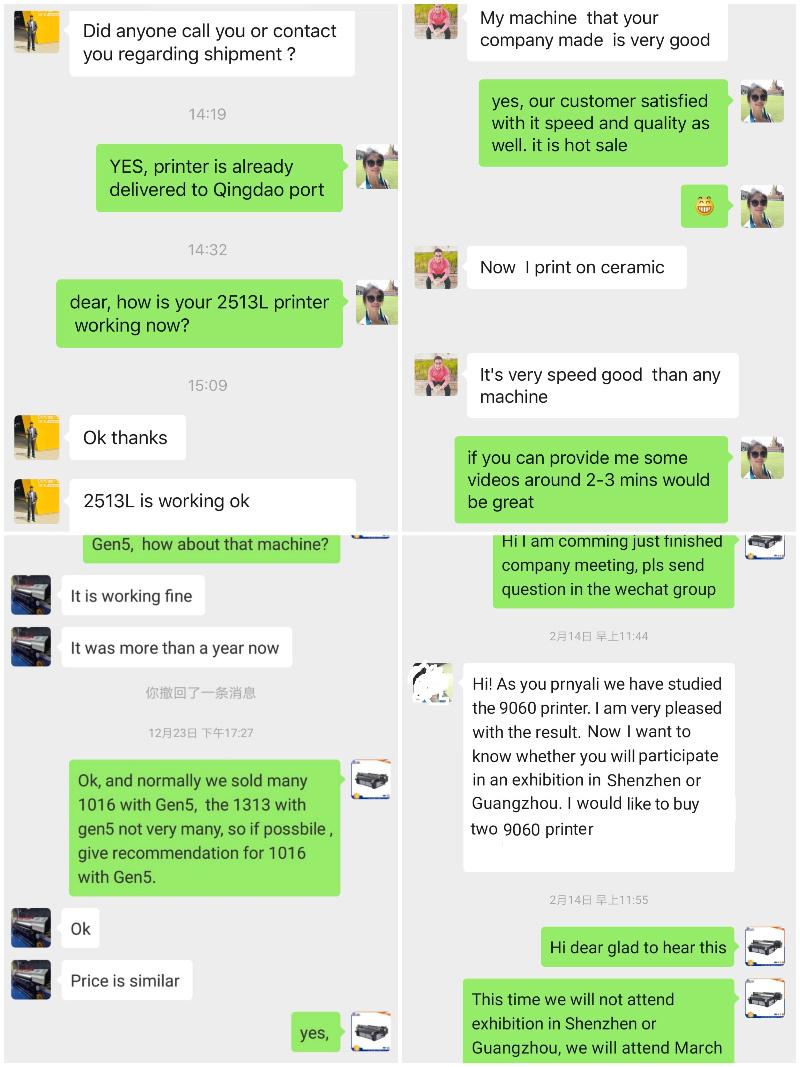

Customer Evaluation:





Company Information:





Our Team:





Custmors Visit:

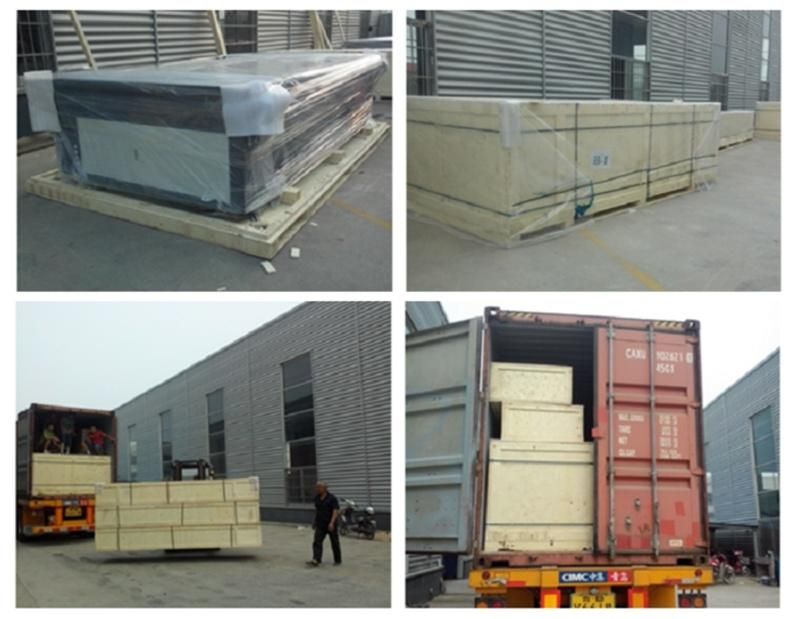

Packing&Shipping:





FAQ:

 1.How long does the printing images will last outdoors and indoor?

      The printing images can last at least 3 years outdoors, and more than 10 years indoor.

 2. How about the stability and quality of the printing images?

      This UV flatbed printer can used to print on most of medias with best quality, durability,best result.

 3. How about the maintance and aftersales service?

      Our engineer available service overseas, and we can provide remote control service and online service for customers.

      But costomer has to be responsible for the accommodation and transportation costs of the technical staff.

 4.Are you a manufacturer or trade agent?

      We are the manufacturer of Uv flatbed printers.

 5. Is there any guarantee for this printer?

      Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the

      main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump,

      printhead, ink filter, and slide block since they are consumables.

 6. How can I install and start to use the printer?

      At first, you should read the users' manual to understand the machine and watch the video. After you get the

     machine, our technician will teach you how to install and use-machine by remote control via Teamviewer or Skype.

     Whenever you have questions to the machine, you can contact our technician or me.



 7.Can I get supplies and wearing parts from you?

      Yes, we provide all the wearing parts for our printers always and they are in stock.

 8. How will you achieve the warranty?

      If any electronics or a mechanical part is confirmed to be broken, Ntek should send new part  within 48hours by

     express like TNT, DHL, FEDEX etc to the buyer. An shipping cost should be  born by the buyer.

  9. What kinds of materials need premier before printing?

     Glass, ceramic, metel, acrylic, marble etc.
