Fluidized Bed Single Jacketed Glass Reactor
Henan Lanphan Industry Co., Ltd.- Type:Reaction Kettle
- Material:Glass-Lined
- Condition:New
- Interlayer Volume:28L
- Glass Material:Gg-17
- Pipe Fitting Material:304 Stainless Steel
Base Info
- Model NO.:S212-200L
- Stirring Speed:0-280rpm
- Stirring Diameter of Axis:15mm
- Specification:610*610*2500mm
- Trademark:lanphan
- Origin:Zhengzhou
- Production Capacity:5000
Description
Basic ParameterType S212-200L Glass material GG-17 Frame material Stainless Steel Pipe fitting material 304 Stainless Steel Move method Universal castors with braking Reaction flask volume 200L Interlayer volume 28L Flange type oil in and out circulation port Enter from low port, come out from high port Number of reactor bottle 6 Discharge outlet liftoff height 450mm Reactor reaction temperature -80-250 degree Vacuum degree 0.098Mpa Stirring speed 0-280rpm Stirring diameter of axis 15mm Stirring power 750W1/5 Voltage/Frequency(V/Hz) 220V/50Hz Boundary dimension(mm*mm*mm) 1300*900*3400 Package weight(KG) 190 Functional Configurations Speed adjustment mode Frequency control speed regulation Electrical machine configuration Low speed reinforcement electrical machine, speed ratio 5:1 Rotate speed display mode digital display Temperature display mode PT100 sensor digital display Sealing mode PTFE sealing, ¢60 flange stirring mouth Condenser Vertical high efficiency double backflow condenser pipe 120*800mm Backflow (distillation) device Backflow elbow is equipped with discharge switch, 50# ball milling mouth Receiving device 10L receiving bottle Dropwise adding device 2L dropwise bottle Depression device 34# standard mouth reducing valve Temperature testing tube 24# standard mouth Solid charging ¢80 flange mouth with PTFE cover Discharging method Inclined glass discharging valve, ¢80 flange mouth Vacuum display mode Vacuum meter Stirring connecting method Universal joint connecting Stirring bar Anchor type stainless steel bar, covered with PTFE Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements.
Packing List of 200L Glass Reactor
Serial Number | Accessory Name | Quantity | Explanation |
1 | Double-layer reactor | 1 pc | Effective volume 200L |
2 | Stirring electrical machine | 1 pc | Rotate speed starting -1350 rotate(adjustable) |
3 | Speed controller | 1 pc | With digital display function(stepless speed regulation) |
4 | 5 mouth reactor cover | 1 pc | Matching use with reactor |
5 | Reactor shelf | 1 set | To support rector |
6 | Condenser | 1 pc | Distill and condensate |
7 | PTFE discharging device | 1 pc | Discharging(detachable) |
8 | Thermometer well | 1 pc | To put thermometer |
9 | Constant Voltage funnel | 1 pc | Charging in vacuum condition |
10 | PTFE stirring bar | 1 set | Inner diameter is made from stainless steel material, covering is made from TEFLON anti-corrosion material |
11 | Distillation condensate elbow | 1 pc | Connect to reactor cover and condenser, used to separate and concentrate |
12 | Vacuum chock plug | 2 pcs | Used to seal |
13 | Vacuum tapping | 1 pc | Used to extract air in reactor so as to obtain vacuum |
14 | Circulating oil bath | 1 pc | Microcomputer control, providing high temperature heat source(with circulatory system; high temperature 300ºC) |

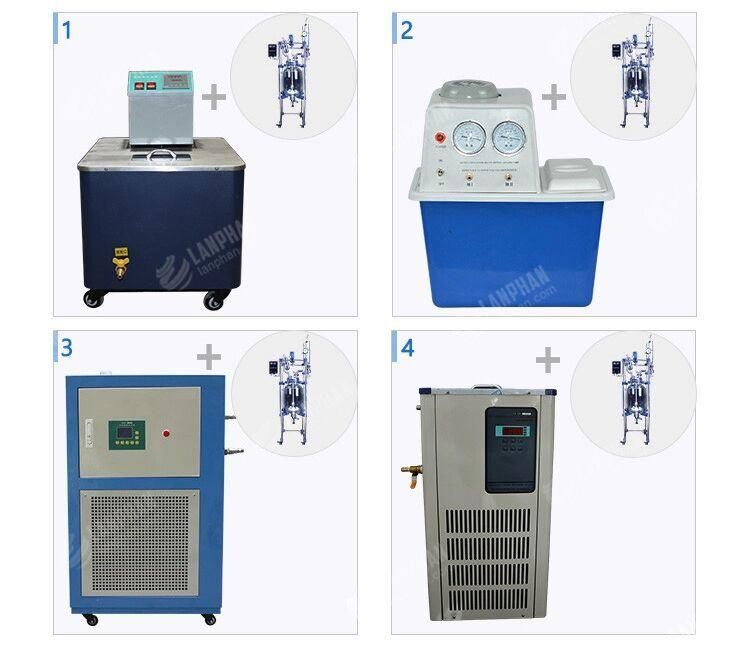

Corollary Equipment

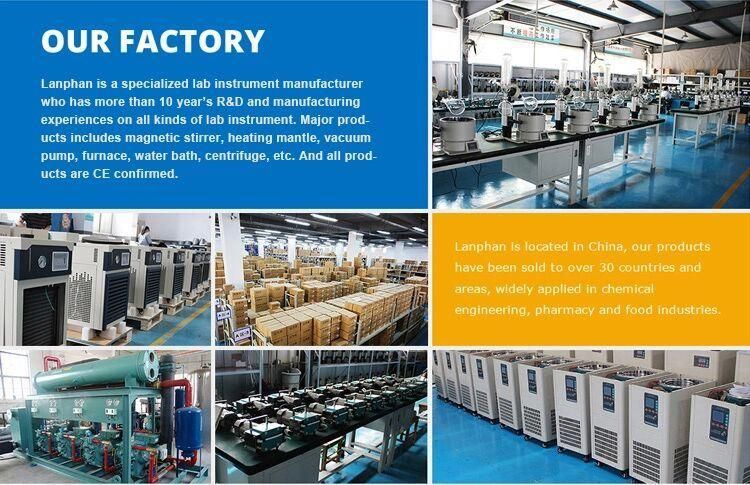

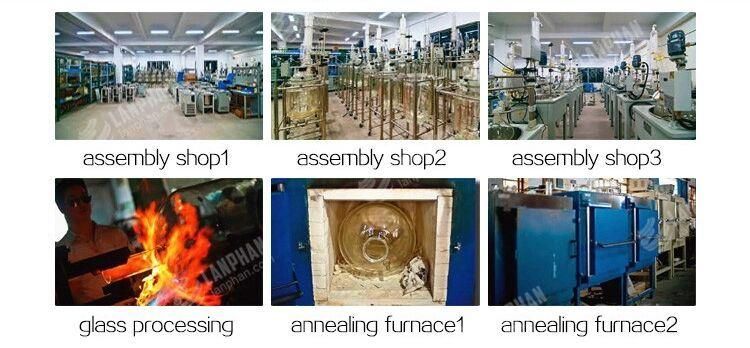

Workshop
Q: What kind of payment term do you accept?
A: Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
Q: what is the main material of the machine?
A: the main structure is made of stainless steel, aluminum alloy.
Q: what is the minimum quantity?
A:1 set at present.
