• Model NO.：LGD-800H
• Temperature Type：Single-temperature
• Defrost Type：Auto Defrost
• Function：Cold Storage
• Certification：CE, ISO, CCC, CB
• Installation：Built-in
• Material：Stainless Steel
• Water Tray：Self-Evaporation
• Castors：Universal Wheels, 2 with Brake
• Light：Energy-Saving LED Light
• Color：Black,White,Grey
• Evaporator：Fin Type
• Defrost：Auto
• Transport Package：Carton Box,Wooden Case
• Specification：1000X680X2030
• Trademark：Aolike
• Origin：China
• HS Code：8418500000
• Production Capacity：1000 PCS,Month

Basic Info.

Model NO. LGD-800H Temperature Type Single-temperature Defrost Type Auto Defrost Function Cold Storage Certification CE, ISO, CCC, CB Installation Built-in Material Stainless Steel Water Tray Self-Evaporation Castors Universal Wheels, 2 with Brake Light Energy-Saving LED Light Color Black/White/Grey Evaporator Fin Type Defrost Auto Transport Package Carton Box/Wooden Case Specification 1000X680X2030 Trademark Aolike Origin China HS Code 8418500000 Production Capacity 1000 PCS/Month

Product Description

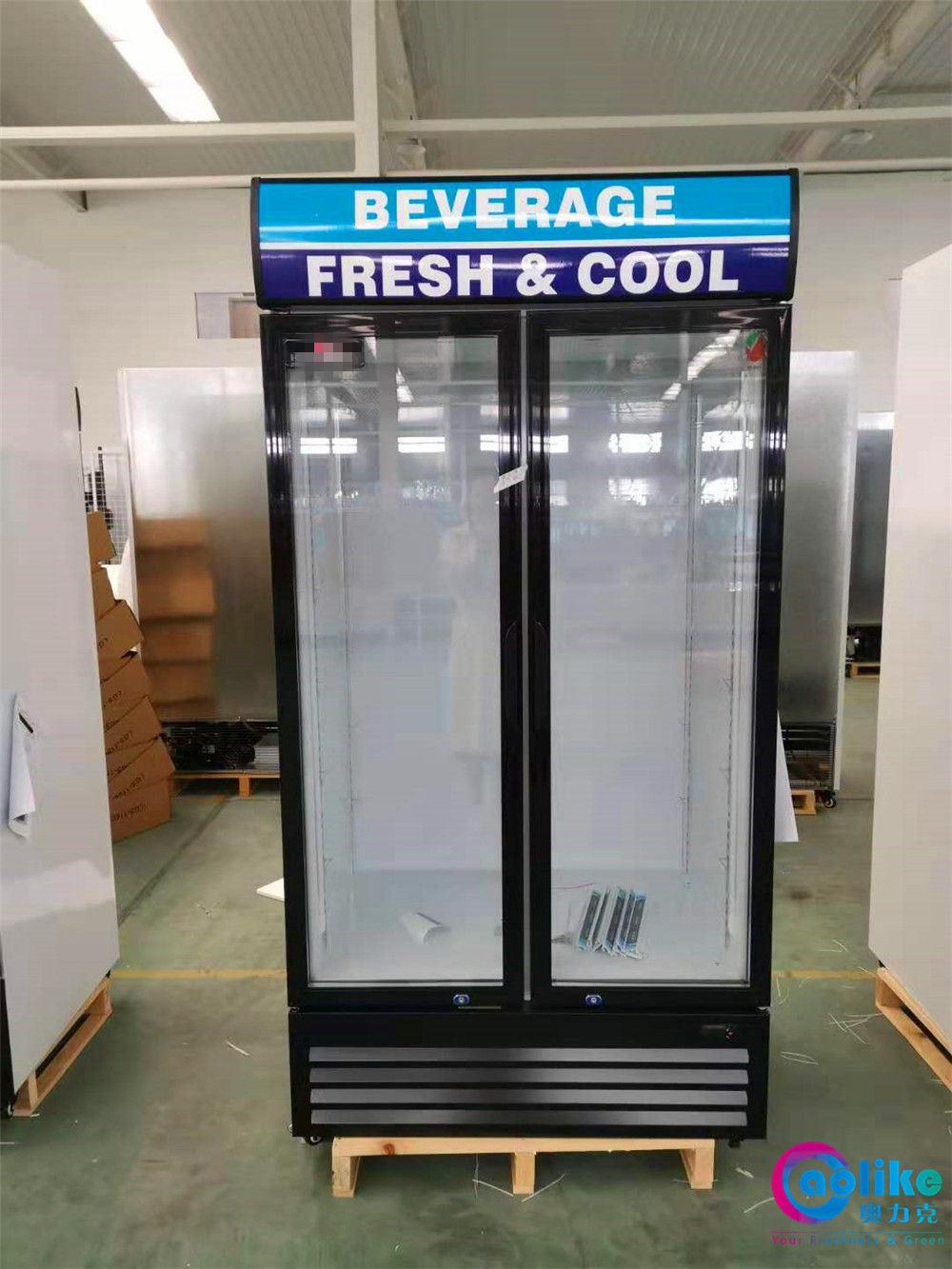

Double Glass Cooler with Mechanical Control,LGD-800H

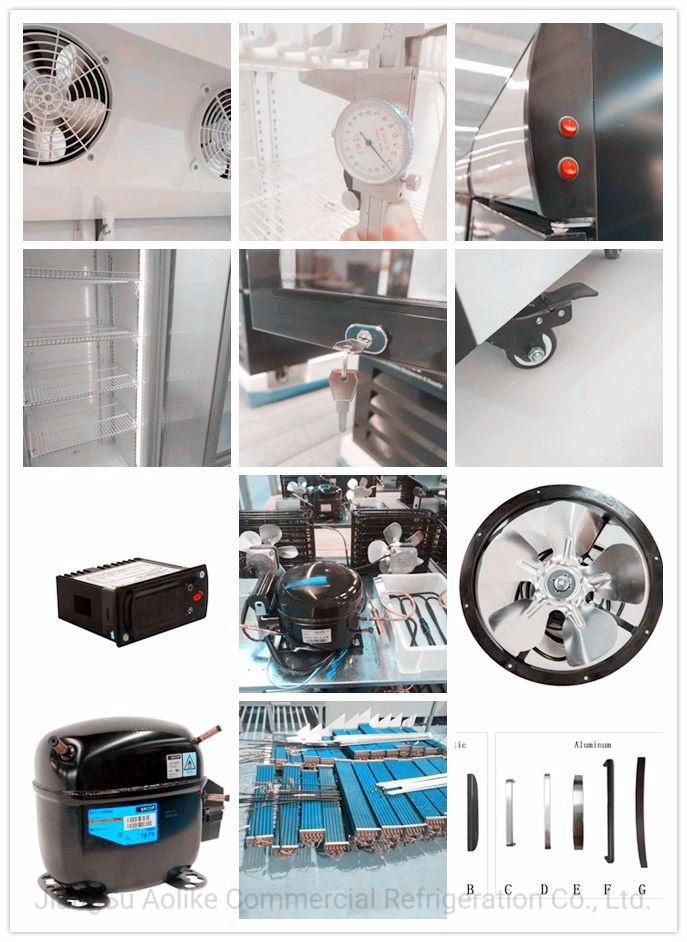

Main features:
1, Dynamic cooling, fin type evaporator;
2, Double layer glass door, front side is tempered;
3, with lock&key, with heavy duty casters;
4, with automatic drain-water evaporating;
5, digital thermostat with auto defrost timer;
6, Reinforced metal shelf.


Options:
extra shelf
canopy sticker
2 side + canopy sticker
aluminum cover door frame and handle
LED light

Basic Information:

Export Model	LGD-800H	LGD-800S	LGD-1000H	LGD-1000S	LGD-1100H	LGD-1100S
Voltage/frequency	220-240V/50Hz	220-240V/50Hz	220-240V/50Hz	220-240V/50Hz	220-240V/50Hz	220-240V/50Hz
Refrigerant	R134a	R134a	R134a	R134a	R134a	R134a
Foaming agent	Cyclopentane	Cyclopentane	Cyclopentane	Cyclopentane	Cyclopentane	Cyclopentane
Climate class (N=16-32ºC,ST=18-38ºC,T=18-43ºC)	N -ST	N -ST	N -ST	N -ST	N -ST	N -ST
Inner Temperature	Chiller (2-10ºC)	Chiller (2-10ºC)	Chiller (2-10ºC)	Chiller (2-10ºC)	Chiller (2-10ºC)	Chiller (2-10ºC)
Input power	630	630	630	630	630	630
Energy (Kw/24hrs)	6.5	6.8	6.5	6.8	6.5	6.8
Net Capacity	780L	673L	879L	772L	954	823
Product Dimension WxDxH(mm)	1000*680*2020	1000*660*2020	1000*750*2020	1000*730*2020	1200*680*2020	1200*660*2020
Package Dimension	1045*705*2085	1045*685*2085	1045*775*2085	1045*775*2085	1245*705*2085	1245*685*2085
Gross weight(kg)	135	135	154	154	154	154
20'GP/40'HQ	17/33	17/33	15/33	15/33	13/28	13/28
Door type	2 Hinged,self-closing	2 Sliding,self-closing	2 Hinged,self-closing	2 Sliding,self-closing	2 Hinged,self-closing	2 Sliding,self-closing
Glass Door	2 layers with one in tempered glass	2 layers with one in tempered glass	2 layers with one in tempered glass	2 layers with one in tempered glass	2 layers with one in tempered glass	2 layers with one in tempered glass
Cabinet	White,Pre-coated plate	White,Pre-coated plate	White,Pre-coated plate	White,Pre-coated plate	White,Pre-coated plate	White,Pre-coated plate
Inside walls	White, powder coating plate	White, powder coating plate	White, powder coating plate	White, powder coating plate	White, powder coating plate	White, powder coating plate
Door handle	Extruded,plastic	Extruded,plastic	Extruded,plastic	Extruded,plastic	Extruded,plastic	Extruded,plastic
Branding	With sticker on canopy and teo sides of body	With sticker on canopy and teo sides of body	With sticker on canopy and teo sides of body	With sticker on canopy and teo sides of body	With sticker on canopy and teo sides of body	With sticker on canopy and teo sides of body
Compressor	Huayi	Huayi	Huayi	Huayi	Cubigel	Cubigel
Cooling system	Fan cooling	Fan cooling	Fan cooling	Fan cooling	Fan cooling	Fan cooling
Dafrosting	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic
Evaporator	Aluminum fin	Aluminum fin	Aluminum fin	Aluminum fin	Aluminum fin	Aluminum fin
Evaporator fan motor	2pcs	2pcs	2pcs	2pcs	2pcs	2pcs
Condenser	Steel wire	Steel wire	Steel wire	Steel wire	Steel wire	Steel wire
Condenser fan motor	1pcs	1pcs	1pcs	1pcs	2pcs	2pcs
Light	2*verticality LED,1*canopy LED	2*verticality LED,1*canopy LED	2*verticality LED,1*canopy LED	2*verticality LED,1*canopy LED	2*verticality LED,1*canopy LED	2*verticality LED,1*canopy LED
Light Switch	Yes	Yes	Yes	Yes	Yes	Yes
Temperature controller	Digital	Digital	Digital	Digital	Digital	Digital
Water tray	Self-evaporation	Self-evaporation	Self-evaporation	Self-evaporation	Self-evaporation	Self-evaporation
Castor	4pcs,2 with brake	4pcs,2 with brake	4pcs,2 with brake	4pcs,2 with brake	4pcs,2 with brake	4pcs,2 with brake
Shelf(Material/No.)	Reinforced wire shelf,8pcs	Reinforced wire shelf,8pcs	Reinforced wire shelf,8pcs	Reinforced wire shelf,8pcs	Reinforced wire shelf,8pcs	Reinforced wire shelf,8pcs

Remarks and conditions:
1) MOQ: 1x40'HQ ,Maximum two models mixed in one container.20GP charge $250/container FOB local cost
2) Payment: 30% T/T before production and balance before loading;
3) Delivery time: around 45 days after payment and artwork confirmation;
4) Warranty: 3 years for compressor and 1 year for rest parts, 1% free spare parts against order qty.

Export Packing:


OTHER HOT MODELS


CETIFICATE

FAQ

What is your MOQ?
Despite a general MOQ of full container load, AOLIKE have flexible MOQ requirement to different products, please consult with our staff.

How long is your lead time / delivery time?
Lead time is around 4 weeks after deposit
payment for a standard specification order.

How can I pay/ What forms of payment do you accept?
You can pay by TT, WestUnion, LC, DP, Credit Card, Check etc. We accept majority currency like USD, EUR, CNY, CHF,HKD, GBP etc.

What are the terms of payment?
30% deposit in advance, balance before delivery.

Do you accept Documentary of Credit (DC) /Letter of Credit (LC) / Documents against Payment (DP)?
Yes. We accept LC at sight ,deffer LC , DP with deposit.

Can I cancel order after payment?
No. Once order is confirmed, we start purchase immediately. Order cancellation may cause partially or complete lost to your deposit.

How do you ship? Where do you ship?
We mainly ship goods by containers from SHANGHAI port, the biggest sea port in CHINA. We can delivery Less than Container Load order by truck to designated warehouse as well.

How do you pack the fridge? Is it strong enough?
Our products are applied with strong and reliable seaworthy packaging which as been testified from our long time export expirence.
