• Model NO.：YC3200
• Printing Speed：15-40sqm,Hr
• System Supported：Win7, Win10
• Printhead：Ricoh G5,Ricoh G6,Toshiba,Konica
• Printing Size：3200mm
• Color：Cmyk LC Lm White and Varnish Optional
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Media Thickness：0-100mm, Higher Can Be Customized
• Life of Printed Image：10years(Outdoor),20years(Indoor)
• Certification：CE Certification,SGS
• Software：Photoprint,Ripprint
• Transport Package：Standard Plywood Case Packing
• Specification：5.38M*3.64M*1.46M
• Trademark：Ntek
• Origin：Shandong, China
• HS Code：8443322100
• Production Capacity：800sets Per Year

Basic Info.

Model NO. YC3200 Printing Speed 15-40sqm/Hr System Supported Win7/ Win10 Printhead Ricoh G5/Ricoh G6/Toshiba/Konica Printing Size 3200mm Color Cmyk LC Lm White and Varnish Optional After-Sales Service Provided Engineers Available to Service Machinery Overseas Media Thickness 0-100mm, Higher Can Be Customized Life of Printed Image 10years(Outdoor),20years(Indoor) Certification CE Certification,SGS Software Photoprint/Ripprint Transport Package Standard Plywood Case Packing Specification 5.38M*3.64M*1.46M Trademark Ntek Origin Shandong, China HS Code 8443322100 Production Capacity 800sets Per Year

Product Description

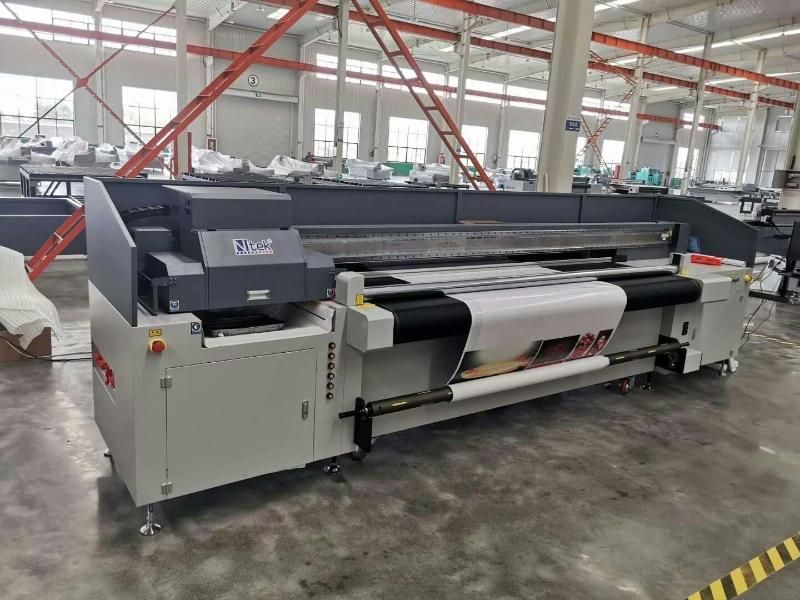

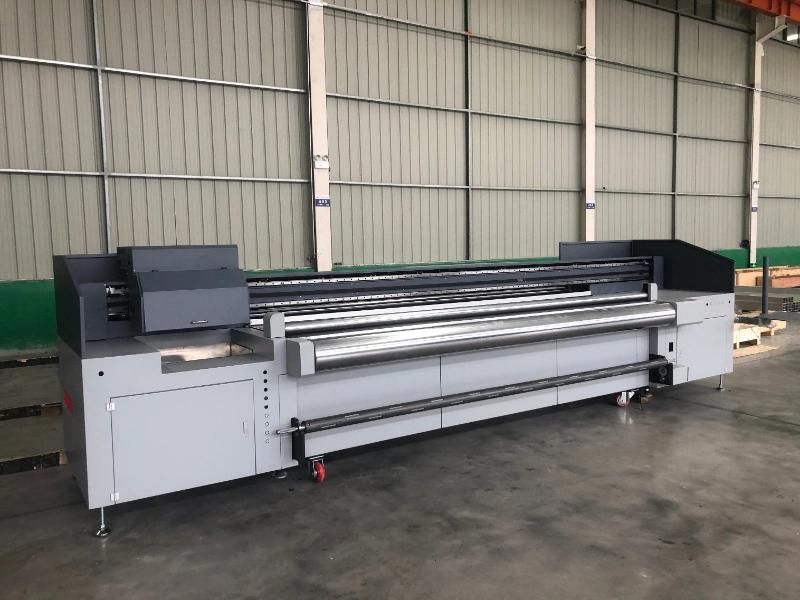

Hybrid uv roll to roll flatbed printer  pvc banner flex printing

Specification:

Product Model	YC3200HR
Printhead Technology	Drop-on demand piezo electric
Printhead Control	Printhead voltage is software adjustable
Printhead Type	RICOH GEN5/RICOH G6
Printhead Number	2-8
Ink Characteristics	UV Curing Ink
Ink reservoirs	Refillable on the fly while printing/2500ml per color
Lamp	UV LED lamp
Color Control	ICC based color, curves and density adjustment
Printhead Arrangement	C M Y K LC LM W varnish optional
Cleaning System	Positive Pressure Cleaning
Guide Rail	TAIWAN HIWIN
Working Table	hard anodized vacuuming platform
Sheet Printing Size	3300*2100mm
Print Interface	USB2.0
Media Handling	Automatic Release/Take Up
Curing System	LED UV System
Print Resolution	300*900dpi,600*600dpi,600*900dpi,600*1200dpi
Printing Speed	15sqm/h-20sqm/h
Media Type	Wallpaper, flex banner, glass, acrylic, wood board, ceramic, metal plate, PVC board, corrugated board, plastic etc.
File Format	TIFF,JPEG,Postscript3,EPS,PDF etc.
RIP Software	Photoprint
Power Supply	220V 50/60Hz(10%) >15A
Operation Environment	Temperature 20 to 28ºC, Humidity 40% to 60%
Machine Dimension	5370*3780*1460mm
Cleaning System	Independent R &D Complete Negative Pressure System
Warranty	12 months exclude the consumables

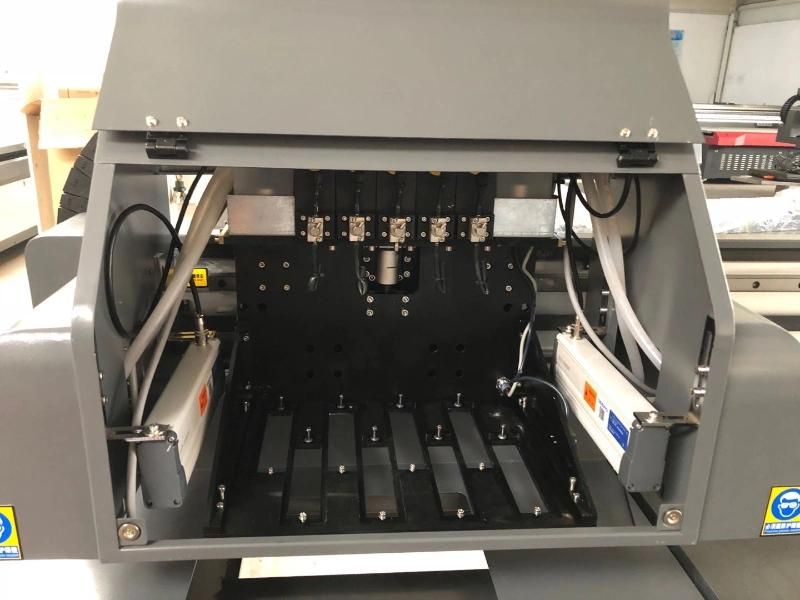

Machine Details:







Printing Sampels










UV Flatbed printer Applications:

A.Decoration industry

B.Glass, Ceramic industry.

C.Advertising&Sign industry.

D.Furniture and personalized products etc.


UV Flatbed printer Applicable material:

The UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.

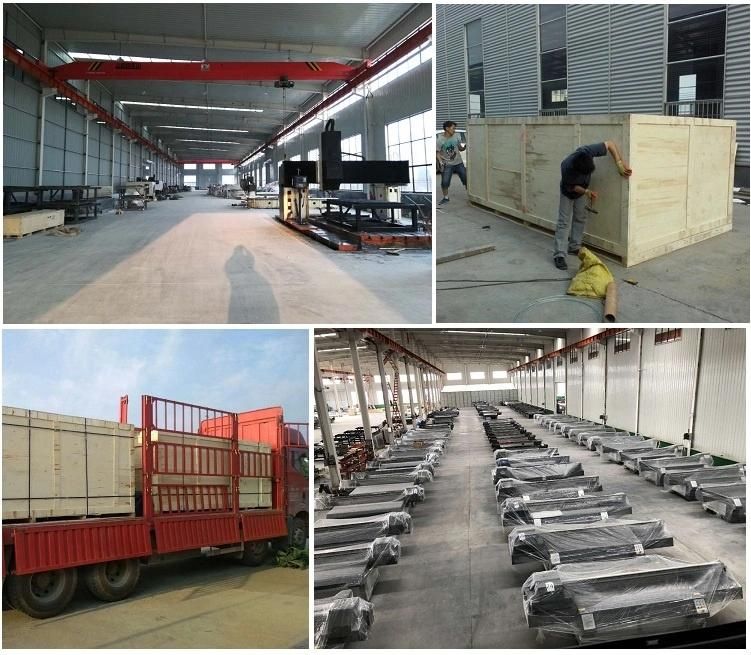

Factory



Exhibition&Team

FAQ

1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.

2.What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.

3.How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.

4.How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer
has to be responsible for the accommodation and transportation costs of the technical staff.

5.Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.

6.Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,
driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.

7.How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand
the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can
contact our technician or me directly.

8.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

9.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like
TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.

10.What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc.
