2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm 22mm Extra Clear Low Iron Float Building Glass for Samples (UC-TP)

Guangzhou Topo Glass Co., Ltd.
  • Structure：Solid
  • Function：Insulated Glass, Low-E Glass, Heat Reflective Glass, Heat Absorbing Glass, Bulletproof Glass, Acid Etched Glass, Decorative Glass

Base Info

  • Model NO.：UC-TP
  • Surface State：Ordinary Net Sheet Glass
  • Grade：Grade One
  • Forming：Float Process
  • Workmanship：Molding machinery
  • Color：Ultra Clear
  • Usage：Furniture, Door, Building, Window
  • Product Name：Ultra Clear Low Iron Glass
  • Max Size：3300mmx8000mm
  • Light Transmittance：91.2%-91.8%
  • Elasticity Modulus：73.1gpa
  • MOQ：1 Crate Super Clear Glass
  • Rupture Modulus(Tensile Strength-Ultimat：41.4 MPa
  • Knoop Hardness：456kgf,mm2
  • Annealing Point：547ºC
  • Softening Point：710ºC
  • Density：2.5076 g,cm3
  • Transport Package：Safety Plywood Packages
  • Trademark：Topo Glass
  • Origin：China
  • Production Capacity：2000 Tons
  • Package size per unit product：40.00cm * 40.00cm * 20.00cm
  • Gross weight per unit product：3.000kg
  • Lead Time：5 days (1 - 1 Pieces) 6 days (2 - 50 Pieces) 10 days (51 - 200 Pieces) To be negotiated ( > 200 Pieces)

Description

Ingredient SiO2 Fe2O3 Al2O3 CaO MgOK2O  Na2OPercentage71.9±0.5<0.0130.5~1.19.5±0.33.4±0.30.02~0.0514.4±0.3
ThickVisible Light Transmit tanceVisible Light Reflecti vitySolar Radiant HeatShading CoeffcientU ValueSound
InsulationUV Penet RationDirect Penetr ateRefl ectAbsorbTotal Penetr ateShort WaveLong WaveTotal(W/m2K)Rm (dB)Rw (dB)Solar Energy sources SeriesArchitec ture Series2mm91.5%8%91%8%1%91%1.080.011.055.8252989%79%3mm91.5 %8%90%8%1%91%1.050.011.055.8263088%76%3.2mm91.4%8%90%8%2%91%1.030.011.055.8263088%75%4mm91.38%8%90%8%2%91%1.030.011.055.8273087.5%73%5mm91.3%8%90%8%2%90%1.030.011.035.8293287%71%6mm91.08%8%89%8%3%90%1.020.011.035.7293286.5%70%8mm90.89%8%88%8%4%89%1.010.011.025.7313485.4%68%10mm90.62%8%88%8%4%89%1.010.021.025.6333684%66%12mm90.44%8%87%8%5%88%10.021.015.5343782.5%64%15mm90.09%8%86%8%6%87%0.990.0215.5353881%61%19mm89.73%8%84%8%7%86%0.970.020.995.5374080%59%22mm89.6%8%82%8%9%85%0.950.020.975.5384380%58%25mm89%8%81%8%9%84%0.930.020.955.5394579%56%

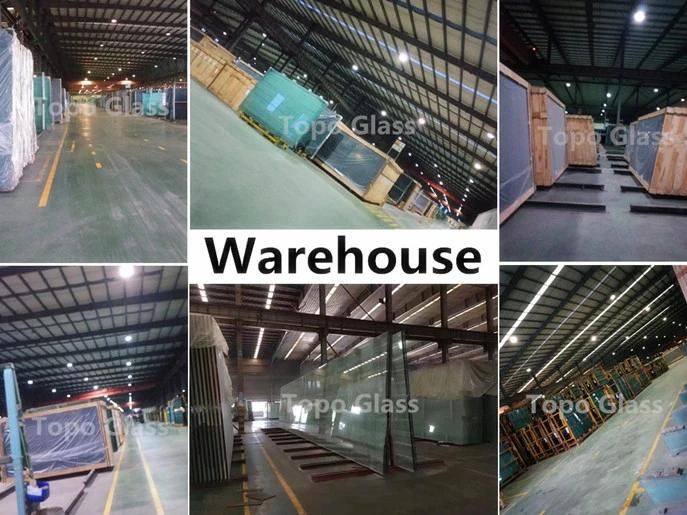

Glass & Warehouse:
2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm 22mm Extra Clear Low Iron Float Building Glass for Samples (UC-TP)

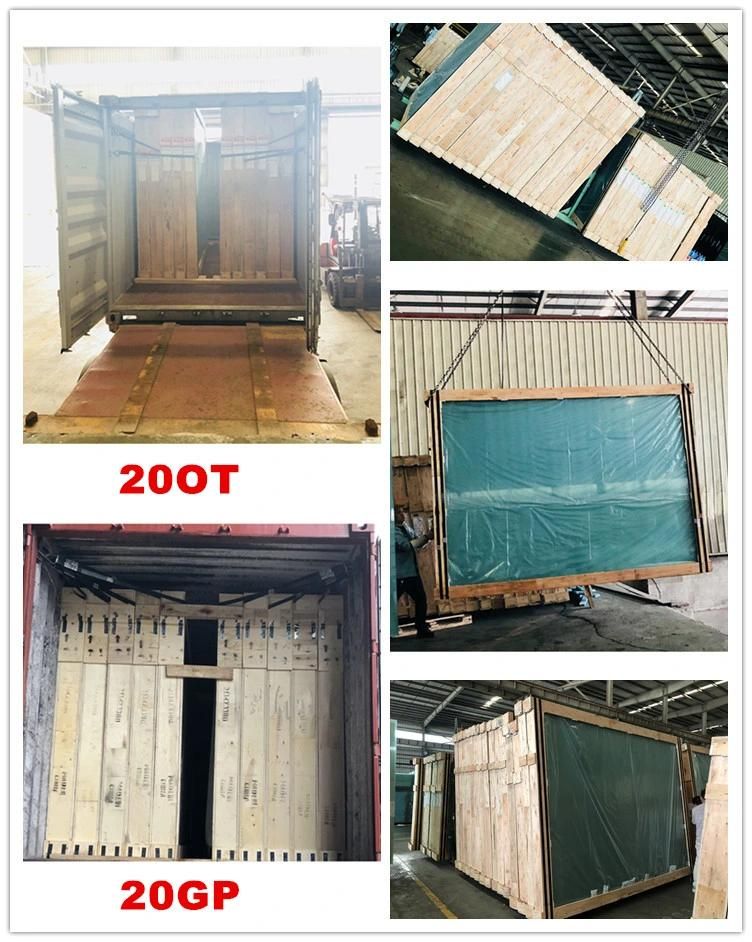

Package & Loading:
2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm 22mm Extra Clear Low Iron Float Building Glass for Samples (UC-TP)Thanks for your time. Welcome to query us at anytime for any questions.
