• Temperature Type：Single-temperature
• Defrost Type：Auto Defrost
• Function：Cold Storage & Freezing, Cold Storage
• Certification：CE, RoHS, CCC, CB, GS, Meps
• Transport Package：Exporting Standard Packing(Carton)
• Trademark：OEM,ODM
• Origin：China
• Production Capacity：300000 PCS ,Year

ModelLB128/138LB198/208HLB198/208SLB320/330HNet (Liters)128/138198/208198/208320/330External Dimension(mm)600*520*850/900900*520*850/900900*520*850/9001350*520*850/900Internal Dimension(mm)520*385*700/750820*385*700/750820*385*700/7501260*385*700/750Packing Dimension(mm)650*570*930/980960*570*930/980960*570*930/9801405*570*930/980N.W./G.W.(kg)48/5862/7262/7280/9020'/40'/40'HQ72/144/14448/96/9648/96/9632/66/66Glass Door typeHinge doorSliding doorHinge doorDoor frame, door handle materialPVCAdjustable shelves (pcs)2446Cabinet Tem.(ºC)0-10Outer CabinetPre-painted steelInside CabinetEmbossed aluminiumCertificationCB,CE,ROHS,GS,MEPS ModelLB320/330SLB128/138BLB198/208BLB320/330BNet (Liters)320/330128/138198/208320/330External Dimension(mm)1350*520*850/900600*520*850/900900*520*850/9001350*520*850/900Internal Dimension(mm)1260*385*700/750520*385*700/750820*385*700/7501260*385*700/750Packing Dimension(mm)1405*570*930/980650*570*930/980960*570*930/9801405*570*930/980N.W./G.W.(kg)80/9048/5862/7280/9020'/40'/40'HQ32/66/6672/144/14448/96/9632/66/66Glass Door typeSliding doorHinge doorDoor frame, door handle materialPVCStainless steelAdjustable shelves (pcs)6246Cabinet Tem. (ºC)0-10Outer CabinetPre-painted steelStainless steelInside CabinetEmbossed aluminiumS/S 304 mirrorCertificationCB,CE,ROHS,GS,MEPS

Foaming door beer cooler,beer fridge,drink cooler

ModelLG128/138LG198/208LG320/330Net (Liters)128/138198/208320/330Net (CB FEET)4.97.311.7Cooling systemFan coolingFan coolingFan coolingAuto-DefrostYesYesYesControl systemElectronicElectronicElectronicExternal Dimension WxDxH(mm)600*520*850/900900*520*850/9001350*520*850/900Packing Dimension WxDxH(mm)650*570*930/980960*570*930/9801405*570*930/980Weight net /Weight gross (kg)48/5862/7280/9020'GP/ 40' GP/ 40' HQ Container72/144/14448/96/9632/66/66Glass Door typeHinge doorHinge doorHinge doorDoor frame, door handle materialPVCPVCPVCDoor Auto ClosingAuto ClosingAuto ClosingAuto ClosingLOCKYESYESYESTypeCYCLOPENTANECYCLOPENTANECYCLOPENTANEDimensions (mm)40(average)40(average)40(average)Adjustable shelves (pcs)246Adjustable feet (pcs)444Locking FeetOptionOptionOptionInternal light vert./hor.*Horizontal*1Horizontal*1Horizontal*1Voltage/frequency220~240V/50HZ220~240V/50HZ220~240V/50HZPower consumption (w)180230265Amp. Consumption (A)11.561.86Energy consumption (kWh/24h)1.51.92.5Cabinet Tem. (ºC)0-100-100-10Temperature digital screenYesYesYesClimate Class As per EN441-4Class 3 ~ 4Class 3 ~ 4Class 3 ~ 4Max. Ambient Temp. (ºC)383838Refrigerant (CFC-free) grR134a/R600aR134a/R600aR134a/R600aOuter CabinetPre-painted steelPre-painted steelPre-painted steelInside CabinetCompressed aluminiumCompressed aluminiumCompressed aluminiumCondenserBottom Mash WireBottom Mash WireBottom Mash WireEvaporatorBlow expanded boardBlow expanded boardBlow expanded boardEvaporator fan14W Square fan14W Square fan14W Square fanCertificationCE,ROHS,GSCE,ROHS,GSCE,ROHS,GS

Green sense& Features

High Efficiency Compressor

Better coefficient of performance (CoP) yields

Reduced energy consumption. Leading brand.

R600a Refrigerant

More effcient. Zero ODP (Ozone Depletion)

Negligible GWP (Global Warming Potential)

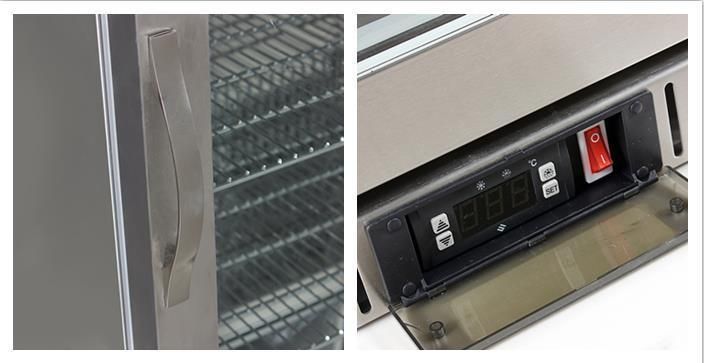

Electronic Control

Carel thermostat,For accurate temperatures and controlled

defrosting

LED Lighting

Longer lifetime and reduced heat in the cabinet

so less work for refrigeration unit

Double tempered Glass Doors

Fitted with easy to clean,replaceable magnetic balloon gasket.

Reduces the potential for condensation.

Basic features

1. Powerful forced air cooling for fast chill down

2. Auto-defrost

3. Electronic temperature control with led display

4. Double layer tempered glass door,reduces the potential for condensation

5. Aluminum Sheet inner body or 304 Stainless steel inner

6. 850mm or 90mm height is optional for the best size for home kitch-room

7. Dynamic cooling, roll bond (plate type) evaporator

8. Self-evaporation water tray

9. Adjustable chromed shelves,large-scale storage space

10.Cyclopentane Insulation. High insulation

11.ODP (Ozone Depletion). Negligible GWP (Global Warming Potential)

12.Eco-friendly refrigerant R134a or R600

13.High Efficiency Compressor,low energy consumption

14.One LED illumination for interior

15.Silk-printed LOGO inside glass door or LOGO on glass door

16.Self-closing doors and door locks standard

17.Adjustable feet

18.Design for beer,low noise and green technical

19.Suitable for supermarket, promotion and home use.











Beer cooler FAQ

What if the freezer is making abnormal noises?

Check following :

1.The freezer unleveled

2.Parts loose

3.Condenser blade touching loose wiring.

4.Refrigerant leaked out

5.Motor bearings worn out.

What if there is water on the floor under and /or around freezer?

Check following:

1.The drain hose outside of the drain pan

2.Leak in the drain pan

3.Excessive ambient humidity and door openings

What if condensation forms on the gasket and /or freezer cabinet?

Check following:

1.Excessive ambient humidity and door openings.

2.The cabinet perimeter heater burned or disconnected

3.Door and /or gasket not closing properly.

What if condensation forms on the door glass?

Check following:

1.Excessive ambient humidity

2.Heated glass transformers not working or disconnected.

FAQ:
1. Q: How about the quality?
A: We use all the best high quality raw material and professional produce.
2. Q: Which style should we choose?
A: We have many models for your choice. Please tell us the application, materials, output and pressure all what you wanted, then we'll introduce.
3. Q: Can we have customized model?
A: Yes. We can make the customized machine according to your correct requirements.
4.Q: What should we do if there are some problems with the machine?
A: You can refers to the Operate Instruction or contact us for online instruction. Also, our engineers are available to service overseas.
5.Q: What is the delivery time?
A: 2 weeks for sample model, 30 days for customized model. It depends for mass production.
6.Q: How about the package?
A: We have plywood case to protect the machine from damage during the long-distance delivery.
7.Q :How about the payment?
A: TT, 30% deposit + 70% before shipment.
