Ntek Yc3321r UV Flatbed and Roll to Roll Printing Machine
LINYI WIN-WIN MACHINERY CO., LTD.- Structure：Flat-Bed Cylinder Press
- Color & Page：Multi-Colour Printing Press
Base Info
- Model NO.：YC3321R
- Usage：Glass, Ceramic, Acrylic, Wood, PVC, Ect...
- Automatic Grade：Semi-Automatic
- Printing Interface：USB2.0
- Printing Speed：15-60sqm,H
- System Supported：Windowsxp32
- Transport Package：Plywood Cases
- Specification：5.37*3.78*1.46m
- Trademark：Ntek
- Origin：Shandong, China
- HS Code：8443322100
- Production Capacity：800 Sets,Year
- Package size per unit product：555.00cm * 225.00cm * 167.00cm
- Gross weight per unit product：2500.000kg
Description
Product Model
YC3321R
Printhead Technology
Drop-on demand piezo electric
Printhead Control
Printhead voltage is software adjustable
Printhead Type
RICOH GEN5/GEN6/KONICA 1024i/SPT1024GS
Printhead Number
2-8 heads
Ink Characteristics
UV Curing Ink
Ink reservoirs
Refillable on the fly while printing/1000ml per color
Lamp
UV LED lamp
Color Control
ICC based color, curves and density adjustment
Printhead Arrangement
C M Y K LC LM W varnish optional
Cleaning System
Positive Pressure Cleaning
Guide Rail
Taiwan HIWIN
Working Table
Vacuum Sucking
Printing Size
3300*2100mm
Print width
3300mm
Roller Material Diameter
Within 200mm
Print Interface
Media Thickness
0-100mm, higher can be customized
Print Resolution
300*900dpi,600*600dpi,600*900dpi,600*1200dpi
Printing Speed
15sqm/h-60sqm/h
Life of Printed Image
3 years(outdoor),10years(indoor)
File Format
TIFF,JPEG,Postscript3,EPS,PDF etc.
RIP Software
RIP/ Photoprint optional
Power Supply
220V 50/60Hz(10%) >15A
Operation Environment
Temperature 20 to 28ºC, Humidity 40% to 60%
Machine Dimension
5.37*3.78*1.46m
Weight
3000kg
Warranty
12 months exclude the consumables
Equipped with Japanese EPSON heads
CMYK and white ink color printing
White ink circulation and mixing functions
Water circulating cooling system for UV LED lamps
Taiwan HIWIN guide rail for stable working
Customized bridge for accurate and stable working
Easy and convenient operation
New updated printer with higher quality and faster speed
Printing Materials:
UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal
panel, aluminium sheet, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated
cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.

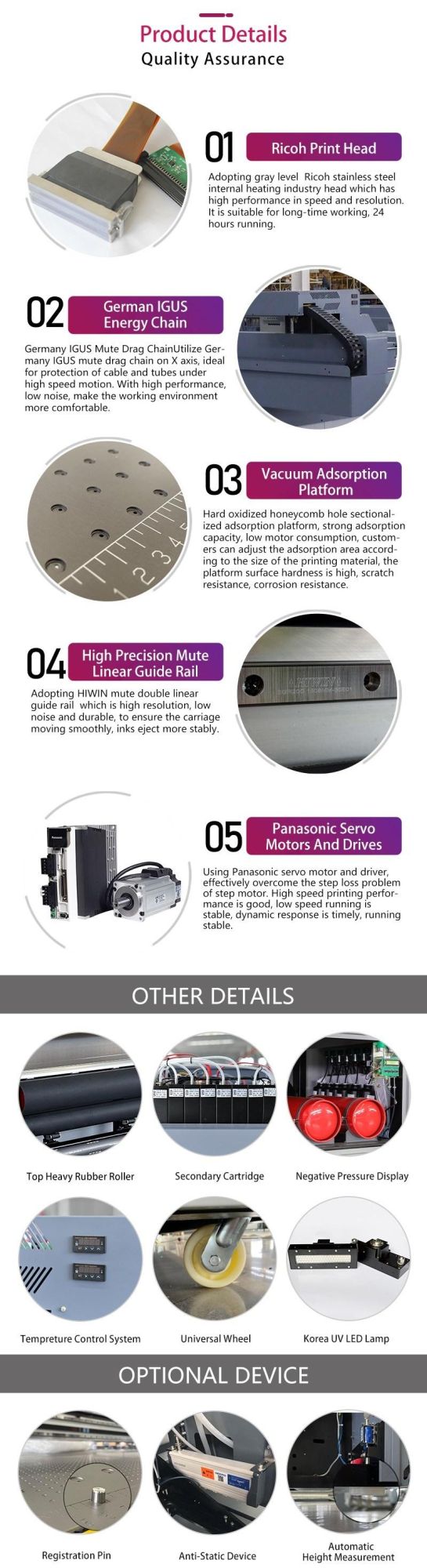

Product Details:
Printing Sample
CMYK+W+V All three colors at onceThe use of gloss oil makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of
the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect the coating,
make the product more durable.
Company Information:
Linyi Win-Win Machinery Co., LtdLinyi Win-Win Machinery Co.,Ltd is founded in 2009 in Shandong, China, is a high-tech machinery manufacturer, integrated with the
R&D,production, sales and maintenance in a whole. We mainly manufacture large format UV printers and OEM service is available.
We have 13 years experience in producing and exporting UV printers. The factory covers more than 20,000 square meters, with six
professional production lines, mainly produce UV flatbed printer, UV flatbed and roll to roll printer and UV hybrid printer. With high
quality, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc., and OEM service is available.
The UV printer can widely print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel, billboard, acrylic
panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such
as PVC, canvas, leather etc., and widely applied in decoration industry, glass industry, advertising&signs industry, leather, furniture and
ceramic industry etc. All our printers are with CE certificate.
FAQ:
1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability,best result.
3. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers.
But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
4.Are you a manufacturer or trade agent?
We are the manufacturer of Uv flatbed printers.
5. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the
main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump,
printhead, ink filter, and slide block since they are consumables.
6. How can I install and start to use the printer?
At first, you should read the users' manual to understand the machine and watch the video. After you get the
machine, our technician will teach you how to install and use-machine by remote control via Teamviewer or Skype.
Whenever you have questions to the machine, you can contact our technician or me.
7.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
8. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send new part within 48hours by
express like TNT, DHL, FEDEX etc to the buyer. An shipping cost should be born by the buyer.
9. What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc.
