• Model NO.：DC-80
• Remote Control：Without Remote Control
• Door Width：950mm
• Door Weight：65~85Kg
• Usage：Market, Fire Exits, Home, Hotel, Office, Hospital, School
• Color：Silver
• Transport Package：Standard Carton Box
• Specification：202x69x44mm
• Trademark：S4A
• Origin：China
• HS Code：8302600000
• Production Capacity：200000,Mouth

Basic Info.

Model NO. DC-80 Remote Control Without Remote Control Door Width 950mm Door Weight 65~85Kg Usage Market, Fire Exits, Home, Hotel, Office, Hospital, School Color Silver Transport Package Standard Carton Box Specification 202x69x44mm Trademark S4A Origin China HS Code 8302600000 Production Capacity 200000/Mouth

Product Description

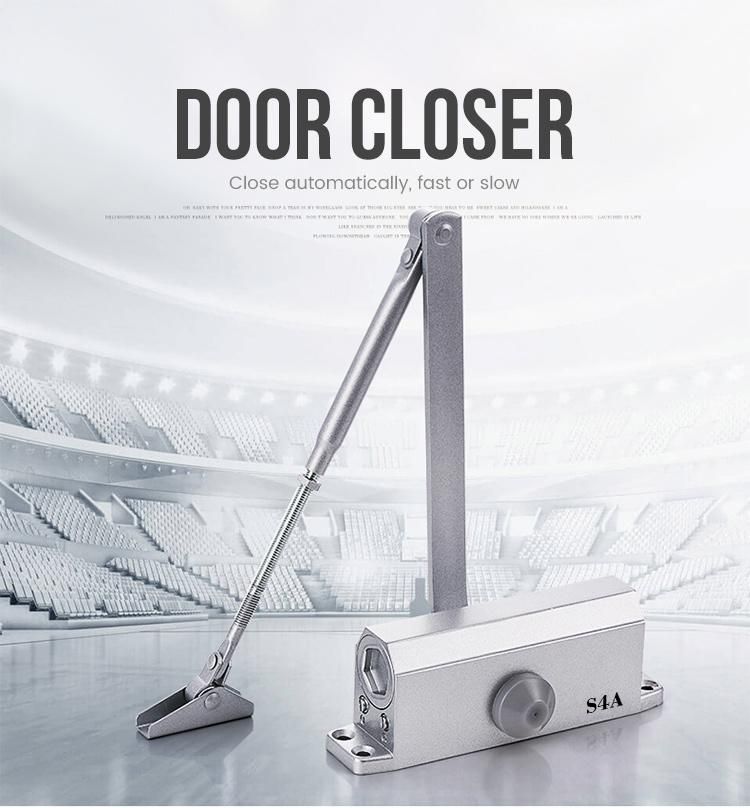

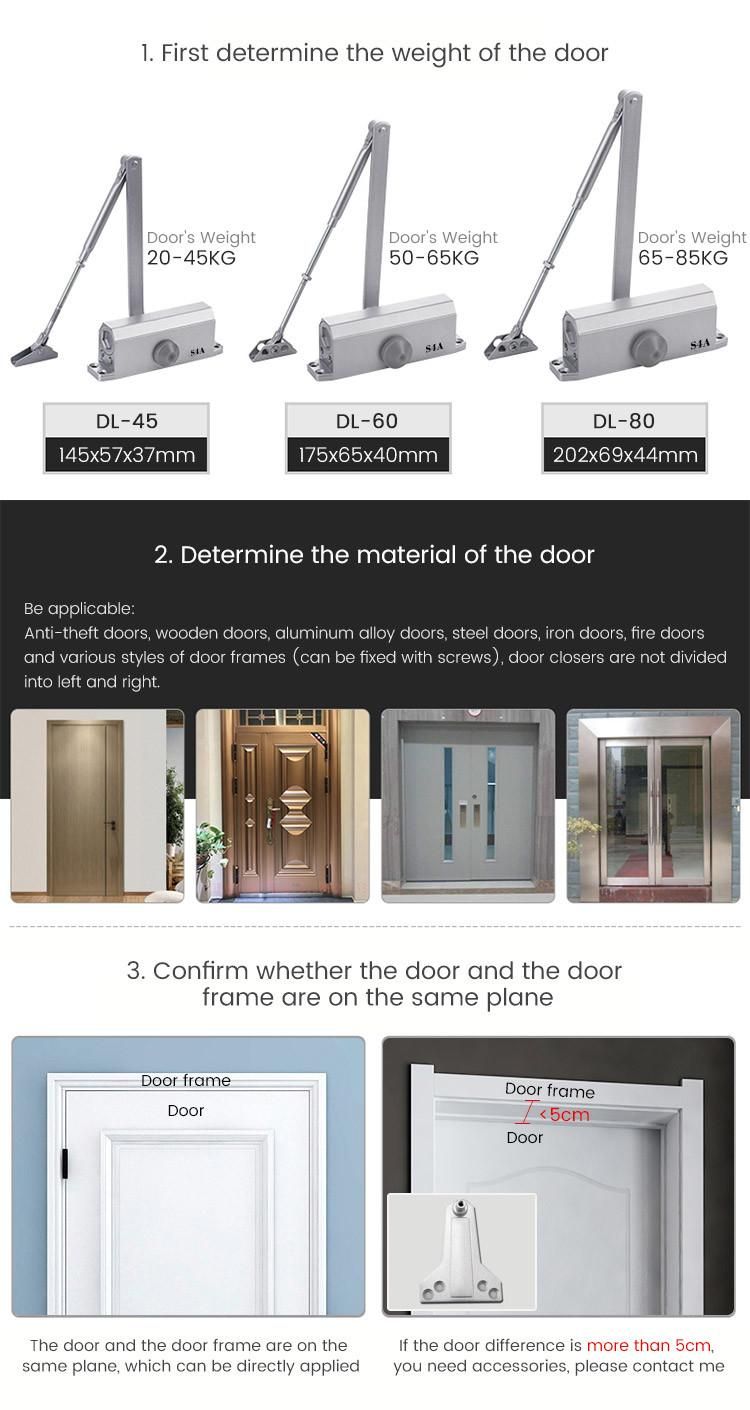

Aluminum Alloy Adjustable Automatic Sliding Wooden Door Fire Rated Door Closer

Model No.: DL-80



Material	Aluminum alloy
Door Weight	65~85KG
Door Width	1200mm
Finish	Electrostatic paint
Speed adjustment	Two stages of adjustable speed
Temperature	-40°C~80°C, -60°C~80°C

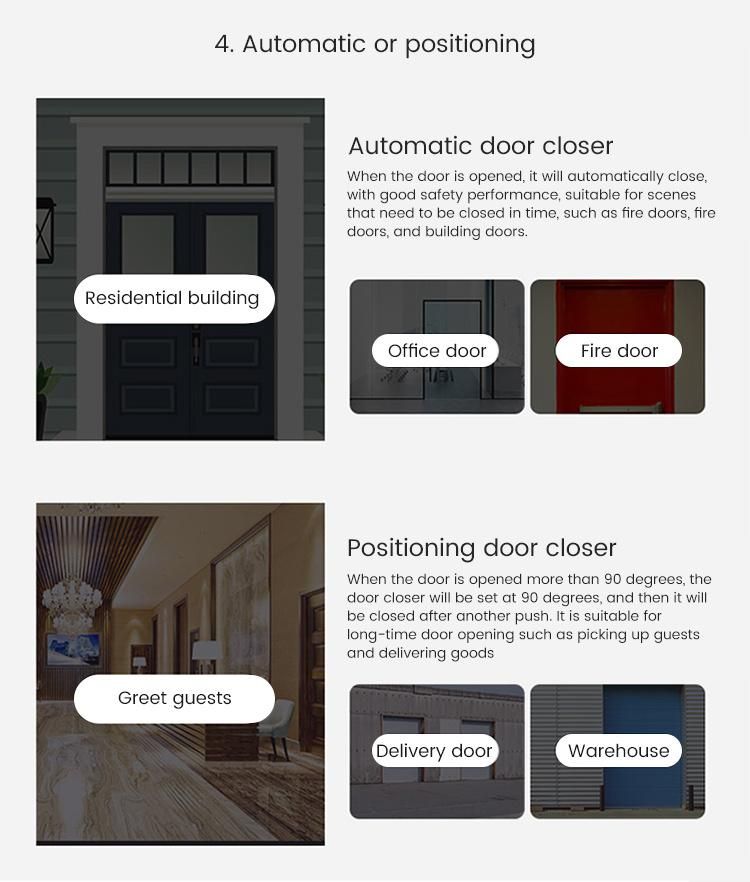

Function	90° hold-open and Automatic (Factory default is Automatic)
Warranty	300000 times; 500000 times
Dimensions	202x69x44mm



Application:

The door closer is only suitable for one-way casement doors and is generally not used for frameless glass doors.



Functional:

A. Economic type door closer of residential and commercial

B. Performance standard: QB/T 2698-2013

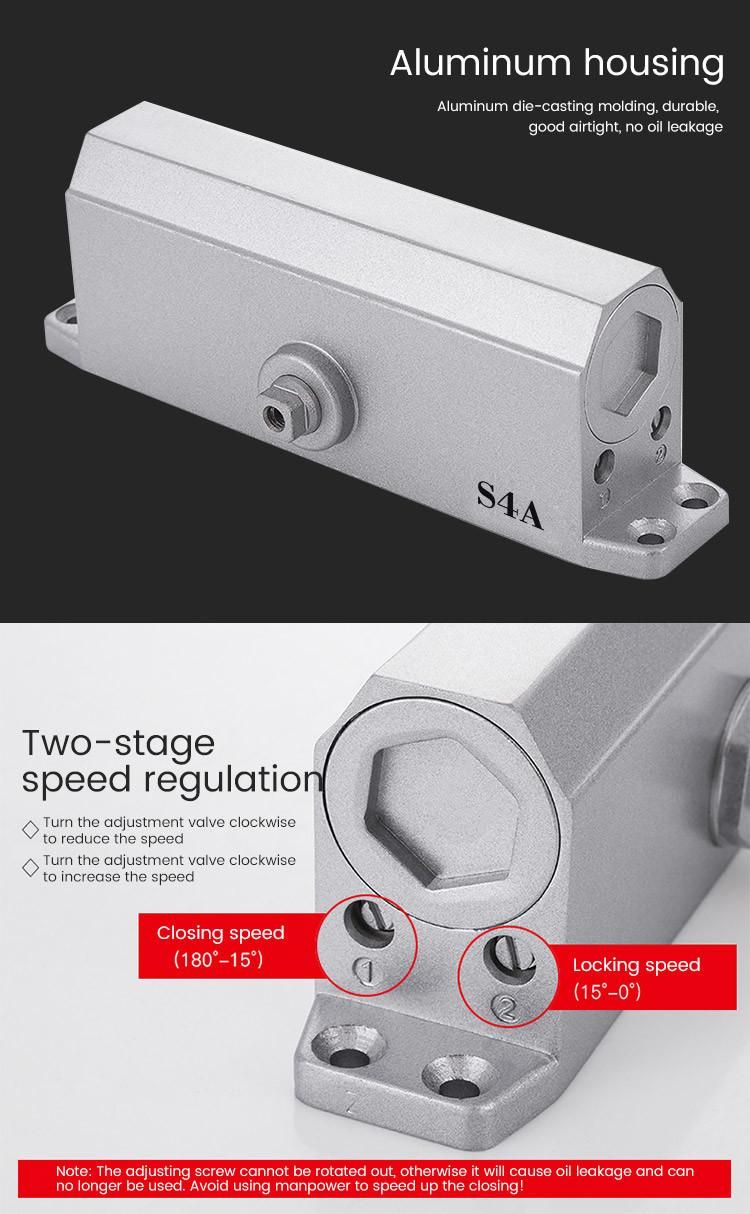

C. Two speed control valve,adjusting closing speed and latching speed

D. ADC12 environmental production of aluminum alloy casting body



Product Details:

1. Cycle test: up to 500,000 cycles

2. Hydraulic oil: low-temperature resistance to -45ºC

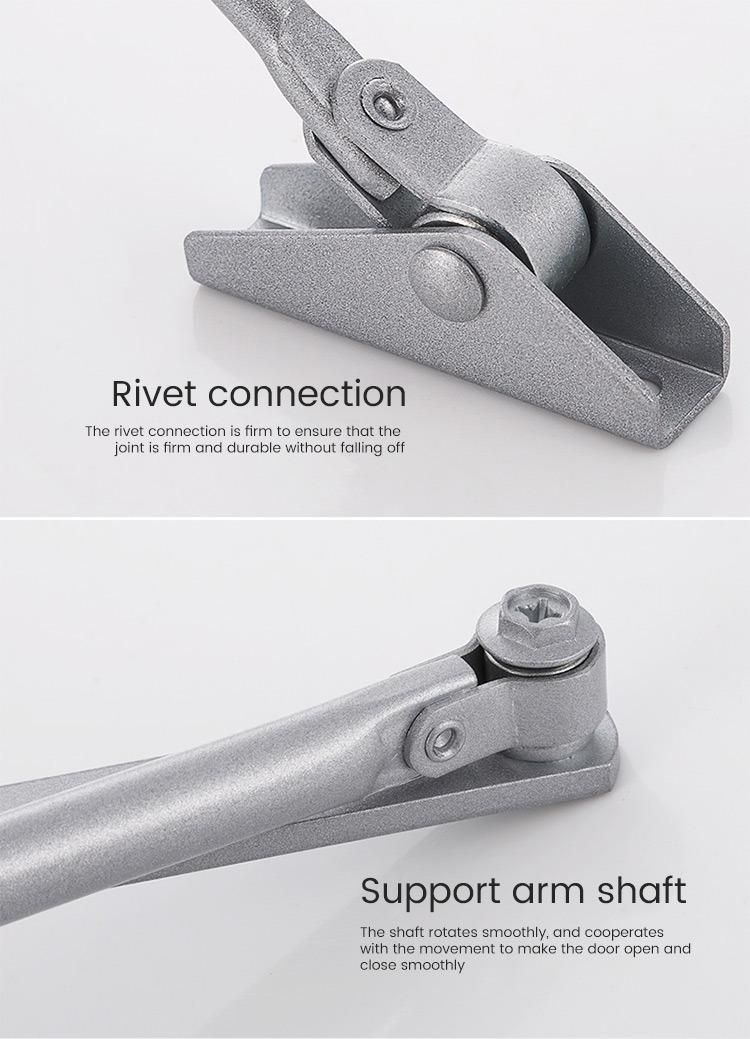

3. Rocker arm: made of good quality carbon steel material, not easily deformed or broken

4. Surface: double painted with anti-corrosion material, 96 hours corrosion resistance

5. Power Size EN4/5

6. Positioning Function Optional

7. Back-check function Optional

8. Manufactured under strict observation of EN1154 standard

9. Precise sealed, preventing oil leakage

10. High quality die-casting aluminum alloy, protected with two-layer bright paint.

11. Two hydraulic press valves controlling two stage doors closing automatically.

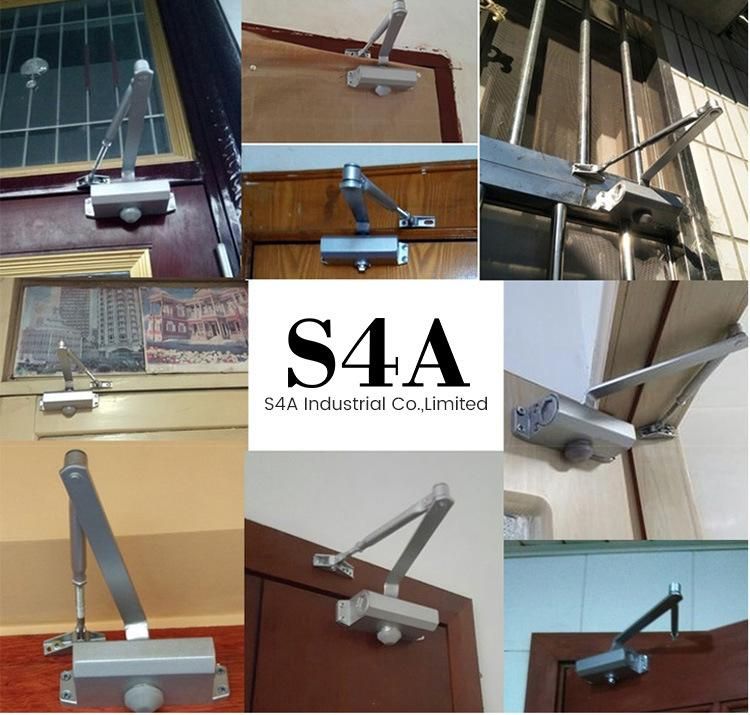

12. It can be installed on the door plate or installed on the doorframe.



Packaging:

Polybag inside, carton box outside,each carton is less than 25kg.(Or according to the customer request)
