Glass Furniture

1500mm Curved Glass Gelato Fridge Refrigerator Freezer Ice Cream Showcase

Guangzhou Lanco Industry Co., Ltd.
  • Capacity:480L
  • Door Number:Double Doors
  • Type:Display Cooler
  • Door Type:Sliding Door
  • Power Source:Electricity
  • Temperature Control:Computer Thermostat

Base Info

  • Model NO.:IS15
  • Temperature Type:Single-temperature
  • Defrost Type:Auto Defrost
  • Function:Cold Storage & Freezing, Cold Storage, Cool Ice Cream
  • Certification:CE, ISO, CCC, CB
  • Transport Package:Poly Bag+Foam+Wooden Box
  • Trademark:OEM,ODM
  • Origin:China
  • Production Capacity:30000 PCS ,Year

Description

ModelIS12IS15IS18IS20Layer of tempered glass3 layers for front;other two layesHeating coilhaveThree-sided frame material for glass baseThe front panel is transparent plastic PVC for advertising display;two sides is glass fiber reinforced plastics;back is 201 stainless steelColor of natural marblered/black/yellow/white/blueDigital temp.controllerhaveGlass doorhaveMaterial of Ice cream panstainless steel 304Qty.of Pan(pcs)12162024Thickness of insulation(mm)70Material of condensorcopperMaterial of evaporatorcopperLock & key////Qty.of versatile wheels(pcs)4RefrigerantR134a/R404AR134a/R404AR134a/R404AR134a/R404ACooling typefan coolingfan coolingfan coolingfan coolingTemp.(ºC)-16~-25-16~-25-16~-25-16~-25Net cap.(L)380480580680N.W.(KG)230260300330G.W.(KG)260290340370Unit dimension(mm)1200*1130*12801500*1130*12801800*1130*12802000*1130*1280Packing dimension(mm)1300*1230*14801600*1230*14801900*1230*14802100*1230*1480Loading qty.(pcs/40`Hc)9999

Ice cream freezer/ice cream cooler

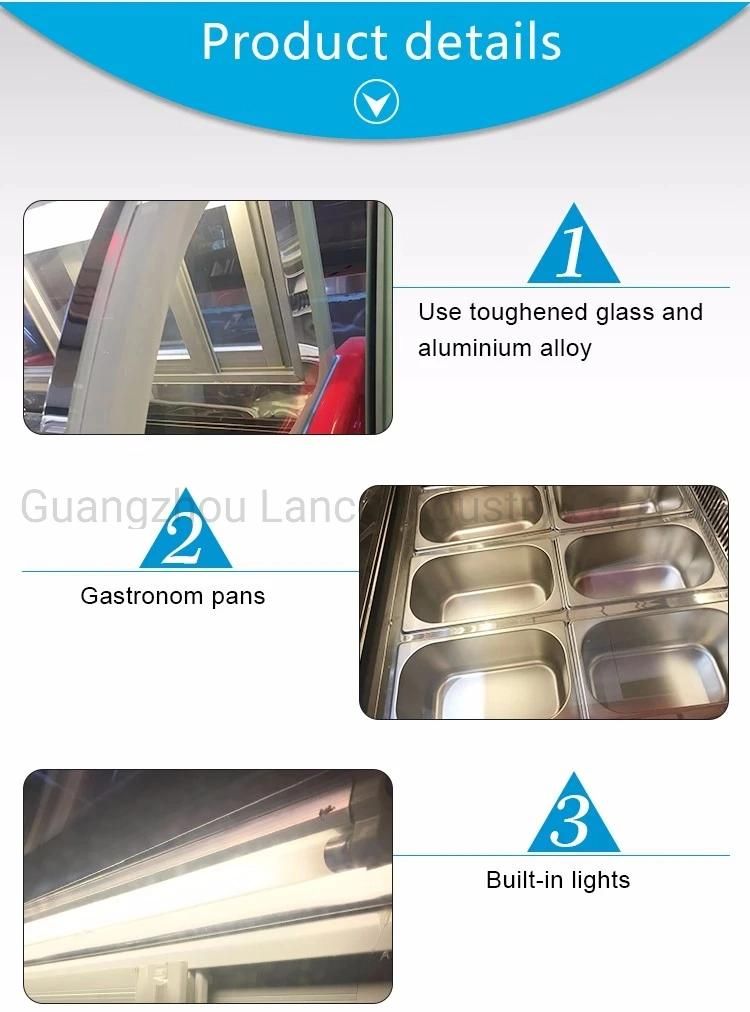

Feature:

1. The gelato showcase has been tested at +35ºC in 70% relative humidity;
2. The ice cream display area has a 8% incline offering maximum visibility
3. World famous brand compressor,low noise,high efficiency,energy saving;
4. EMB fan motor from Germany,high-power;
5. Three-layers of hollow insulating glass,greater thermal insulation;
6. Tempered glass with transparent conducting films(ITO glass),invisible heating coil in the middle of glasses,high efficiency mist;
7. High density foam(60mm thickness):waterproof and rust-proof insulation;guaranteeing minimal dispersion and greatly reduced running costs;
9. Digital temp.controller,intelligent precise temperature control;
10.Two temp.display,one is in the front,other one is in the back;
11. Fan forced ventilation,ensure the quality of ice cream;
12. Fan cooling ,Temperature for -16~-22ºC ,can be according;
13. LED lights to make the showcase more luxurious;
14. SS304 inner guarantees structural strength and hygiene
15. Base type : Stainless steel 304 or stainless steel 201 or pure marble or customized option;
16. 3L, 4L ,5 L S/S Ice cream Pans or GN 1/3 pan (325x176x100mm) 1/4pan (265x162x100/60mm )Pan for choice.
1500mm Curved Glass Gelato Fridge Refrigerator Freezer Ice Cream Showcase

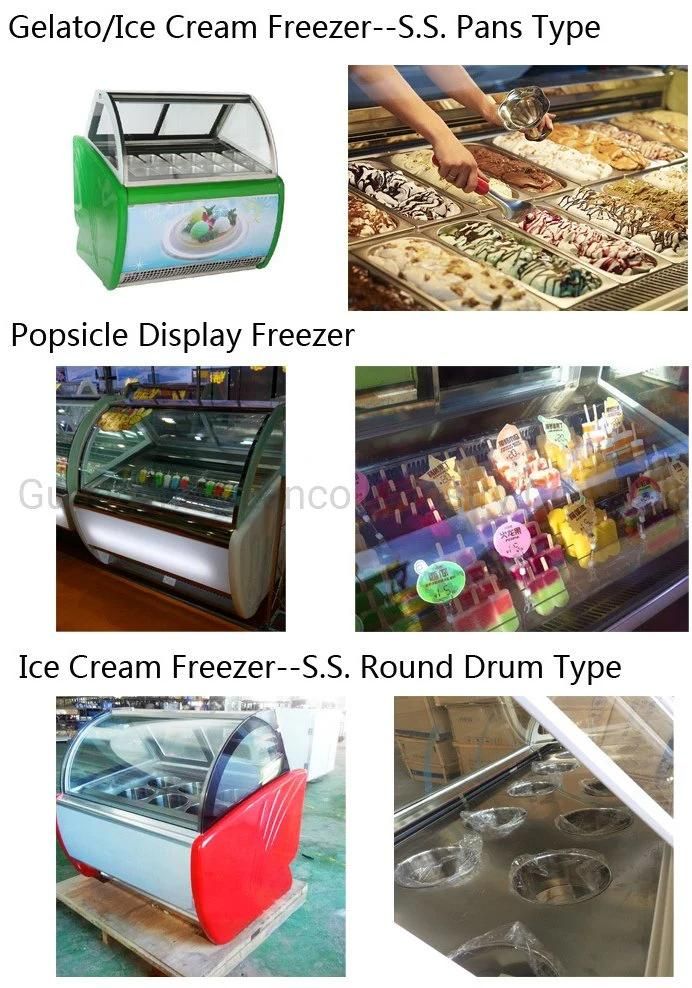

Ice cream showcase freezer

ModelQty.of Pan(pcs)Net cap.(L)N.W./G.W.(KG)Temp.(ºC)Unit dimension(mm)Packing dimension(mm)40`HQ (pcs)IS12L12280260/300-16~-251130*1068*12501230*1168*145034IS15L16380280/320-16~-251430*1068*12501530*1168*145030IS18L20480300/340-16~-251730*1068*12501830*1168*145028IS1212380230/260-16~-251200*1130*12801300*1230*14809IS1516480260/290-16~-251500*1130*12801600*1230*14809IS1820580300/340-16~-251800*1130*12801900*1230*14809IS2024680330/370-16~-252000*1130*12802100*1230*14809IS1.212380230/260-16~-251200*968*13861300*1068*158618IS1.516480260/290-16~-251500*968*13861600*1068*158614IS1.820580280/320-16~-251800*968*13861900*1068*158612IS2.022680300/340-16~-252000*968*13862100*1068*1586111500mm Curved Glass Gelato Fridge Refrigerator Freezer Ice Cream Showcase
1500mm Curved Glass Gelato Fridge Refrigerator Freezer Ice Cream Showcase
Wooden box packing:
1500mm Curved Glass Gelato Fridge Refrigerator Freezer Ice Cream Showcase
1500mm Curved Glass Gelato Fridge Refrigerator Freezer Ice Cream Showcase

FAQ:
1. Q: How about the quality?
A: We use all the best high quality raw material and professionally produce.
2. Q: Which style should we choose?
A: We have many models for your choice. Please tell us the application, materials, output and pressure all what you wanted, then we'll introduce.
3. Q: Can we have customized model?
A: Yes. We can make the customized machine according to your correct requirements.
4.Q: What should we do if there are some problems with the machine?
A: You can refers to the Operate Instruction or contact us for online instruction. Also, our engineers are available to service overseas.
5.Q: What is the delivery time?
A: 2 weeks for sample model, 30 days for customized model. It depends for mass production.
6.Q: How about the package?
A: We have plywood case to protect the machine from damage during the long-distance delivery.
7.Q :How about the payment?
A: TT, 30% deposit + 70% before shipment.
