• Model NO.：LG-1000S
• Door：Sliding Glass Door
• Gas：R134A
• Temperature Range：0~10
• Climate Type：St, T
• Transport Package：5 Layers Carton Box with Wooden Pallet
• Trademark：OEM
• Origin：Guangzhou, China
• HS Code：841850

Basic Info.

Model NO. LG-1000S Door Sliding Glass Door Gas R134A Temperature Range 0~10 Climate Type St, T Transport Package 5 Layers Carton Box with Wooden Pallet Trademark OEM Origin Guangzhou, China HS Code 841850

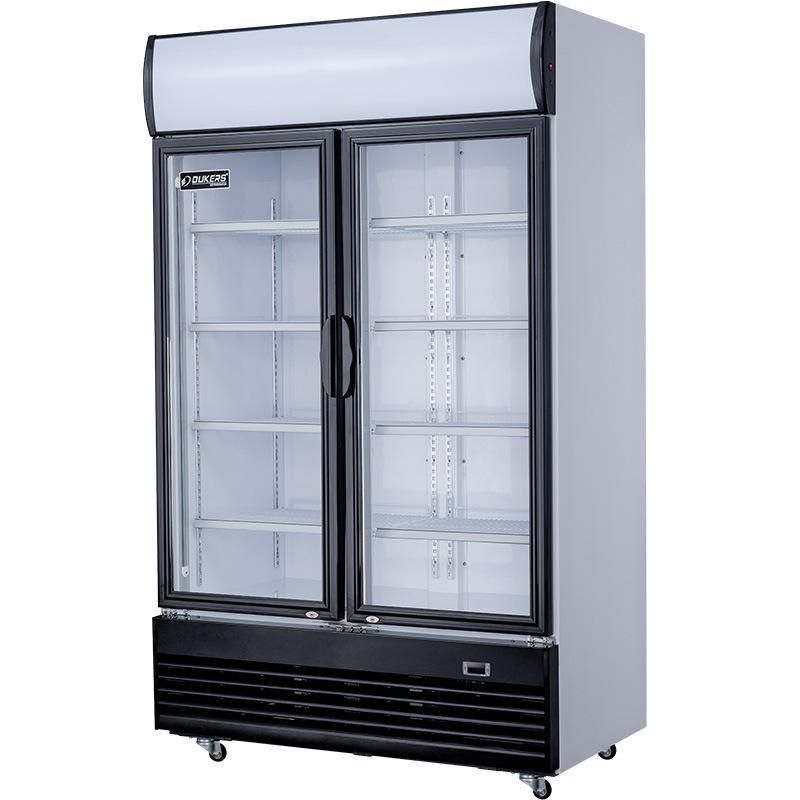

Product Description

Product features:



-Fan cooling system,auto-defrost

-1000 liter

-Famous brand compressor,copper pipe

-CFC free,low power consumption

- bottom condenser with fan motor

-38 or 43 degrees abmient temp.suitable

-With different door frame color for option

-Large light canopy for advertisement

-2 Inner lights for bright showing effect

-Large-scalre storage space

-Double layer door glass

-4 wheels for easy moving

- with aluminum door frame for option

























MODEL	LG-400F	LG-600F	LG-800BF	LG-800BFS	LG-1000BF	LG-1000S
Net   (lt)	398	588	782	800	983	983
Cooling system	Fan cooling	Fan cooling	Fan cooling	Fan cooling	Fan cooling	Fan cooling
Auto-Defrost	Yes	Yes	Yes	Yes	Yes	Yes
Control system	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic
Temperature digital screen	Yes	Yes	Yes	Yes	Yes	Yes
External Dimension  WxDxH (mm)	900x630x1856	900x725x2036	1000x730x2036	1000x645x2036	1200x730x2036	1200x645x1948
Dimensions with packing,carton WxDxH	955x675x1956	955x770x2136	1060x770x2136	1060x785x2136	1260*770*2136	1255*770*2136
Weight net /Weight gross (kg)	129/145	140/154	146/164	146/164	177/199	177/199
20'GP/ 40' GP/ 40' HQ Container	20/41/41	18/36/36	15/33/33	15/33/33	13/27/27	13/27/27
Glass Door type	hinge door	hinge door	hinge door	Sliding door	hinge door	Sliding door
Door frame, door handle material	black /Grey pvc/aluminum for option	black /Grey pvc/aluminum for option	black /Grey pvc/aluminum for option	black /Grey pvc	black /Grey pvc/aluminum for option	black /Grey pvc
Glass type, (low-e coated/tempered)*	tempered	tempered	tempered	tempered	tempered	tempered
Door auto closing	For option	For option	For option	For option	For option	For option
foaming agent(insulation)	cyclopentane	cyclopentane	cyclopentane	cyclopentane	cyclopentane	cyclopentane
Dimensions (mm)	50(average)	50(average)	50(average)	50(average)	50(average)	50(average)
Adjustable shelves (pcs)	8	8	8	8	8	8
Wheels	4	4	4	4	4	4
Locking Feet	2	2	2	2	2	2
Canopy light	Yes /20W	Yes /20W	Yes /20W	Yes /30W	Yes /30W	Yes /30W
Internal light vert./hor.*	Vertical*2/20W+20W	Vertical*2/30W+30W	Vertical*2/30W+30W	Vertical*2/30W+30W	Vertical*2/30W+30W	Vertical*2/30W+30W
Voltage/frequency	220~240V/50HZ	220~240V/50HZ	220~240V/50HZ	220~240V/50HZ	220~240V/50HZ	220~240V/50HZ
Power consumption (w)	460	460	561	650	650	650
Amp. Consumption (A)	3.3	3.3	4.08	4.08	4.08	4.08
Energy consumption (kWh/24h)	3.52	5.1	6.47	7.84	8.84	9.84
Climate Class According to EN441-4	Class 3  ~  4	Class 3  ~  4	Class 3  ~  4	Class 3  ~  4	Class 3  ~  4	Class 3  ~  4
Cabinet Tem.  0 C	0~10	0~10	0~10	0~10	0~10	0~10
Max. Ambient Temp.   0 C	38	38	38	38	38	38
Refrigerant  (CFC-free)  gr	R134a  /220g	R134a  /250g	R134a  /360g	R134a  /370g	R134a  /480g	R134a  /480g
Outer casing, galvanized; pre-painted	Pre-paintedcold-roll steel sheets	Pre-paintedcold-roll steel sheets	Pre-paintedcold-roll steel sheets	Pre-paintedcold-roll steel sheets	Pre-paintedcold-roll steel sheets	Pre-paintedcold-roll steel sheets
Inner Cabinet	pre-painted aluminium plate	pre-painted aluminium plate	pre-painted aluminium plate	pre-painted aluminium plate	pre-painted aluminium plate	pre-painted aluminium plate
Condenser	Copper fins	Copper fins	Bundy tubing	Bundy tubing	Bundy tubing	Bundy tubing
Condenser fan motor	Yes	Yes	Yes	Yes	Yes	Yes
Evaporator	Copper fins	Copper fins	Copper fins	Copper fins	Copper fins	Copper fins
Evaporator fan	High speed	High speed	High speed	High speed	High speed	High speed
C ertification	CE,ROHS	CE,ROHS	CE,ROHS,SASO,MEPS	CE,ROHS,SASO,MEPS	CE,ROHS,SASO,GS,MEPS	CE,ROHS,SASO,GS
