• Model NO.：LGD-1200S
• Temperature Type：Single-temperature
• Defrost Type：Auto Defrost
• Function：Cold Storage & Freezing, Freezing, Cold Storage
• Certification：CE, RoHS, UL, ISO, CCC, CB
• Color：Black,White,Grey
• Brand：OEM Brand
• Glass Door：Double Door
• Cooling System：Fan Dynamic Cooling
• Castors：Universal Wheels, 2 with Brake
• Light：Energy-Saving LED Light
• Controller：Digital Termostat
• Refrigerant：R134A,R290
• Evaporator：Fin Type
• Inner Temperature：2-10 Centigrade
• Transport Package：Carton+Foam Bottom+Wood Pallet
• Specification：1200x730x2020
• Trademark：OEM,ODM
• Origin：China
• HS Code：8418500000
• Production Capacity：100000PCS,Year

Basic Info.

Model NO. LGD-1200S Temperature Type Single-temperature Defrost Type Auto Defrost Function Cold Storage & Freezing, Freezing, Cold Storage Certification CE, RoHS, UL, ISO, CCC, CB Color Black/White/Grey Brand OEM Brand Glass Door Double Door Cooling System Fan Dynamic Cooling Castors Universal Wheels, 2 with Brake Light Energy-Saving LED Light Controller Digital Termostat Refrigerant R134A/R290 Evaporator Fin Type Inner Temperature 2-10 Centigrade Transport Package Carton+Foam Bottom+Wood Pallet Specification 1200x730x2020 Trademark OEM/ODM Origin China HS Code 8418500000 Production Capacity 100000PCS/Year

Product Description

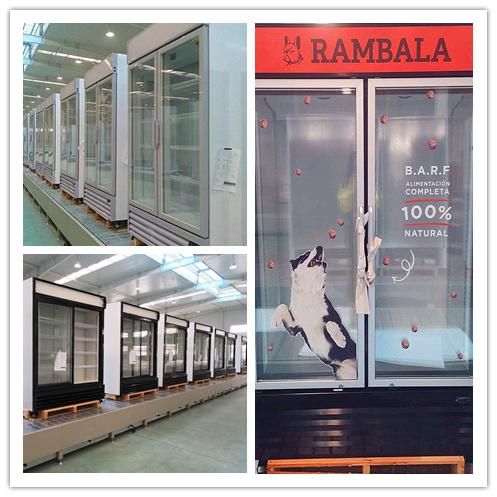

R290 Commercial Drink Refrigerator with Sliding Glass Door for Promotion

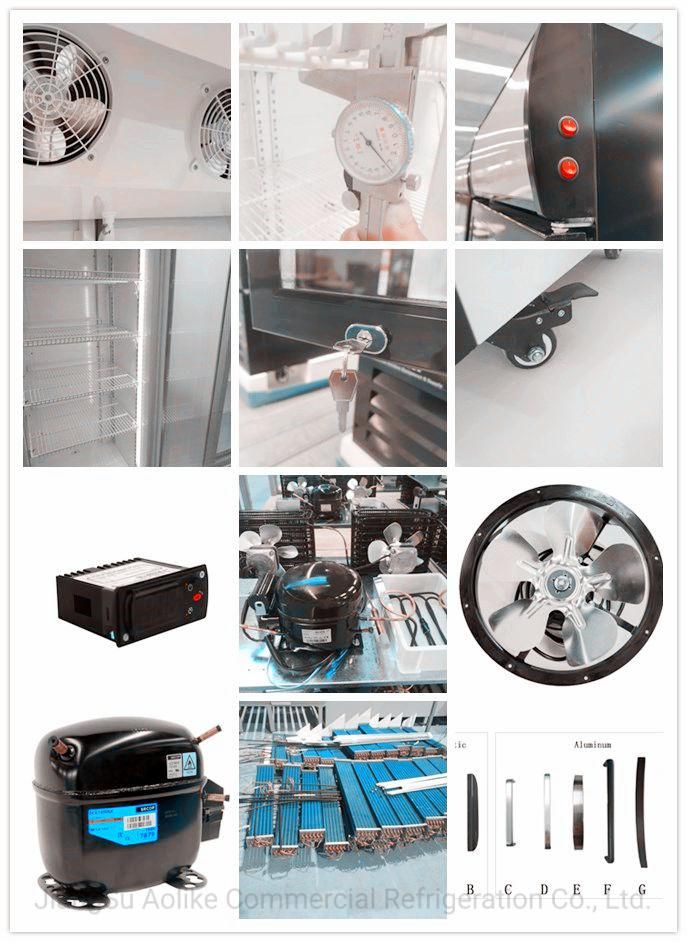

Main features:
1, Dynamic cooling, fin type evaporator;
2, Double layer glass door, front side is tempered;
3, with lock&key, with heavy duty casters;
4, with automatic drain-water evaporating;
5, digital thermostat with auto defrost timer;
6, Reinforced metal shelf.


Options:
extra shelf
canopy sticker
2 side + canopy sticker
aluminum cover door frame and handle
LED light
Refrigerant:R600a,R404a,R290

BASIC INFORMATION

Export Model	LGD-1200H	LGD-1200S	LGD-1300H	LGD-1300S	LGD-1400H	LGD-1400S
Voltage/frequency	220-240V/50Hz	220-240V/50Hz	220-240V/50Hz	220-240V/50Hz	220-240V/50Hz	220-240V/50Hz
Refrigerant	R134a	R134a	R134a	R134a	R134a	R134a
Foaming agent	Cyclopentane	Cyclopentane	Cyclopentane	Cyclopentane	Cyclopentane	Cyclopentane
Climate class (N=16-32ºC,ST=18-38ºC,T=18-43ºC)	N -ST	N -ST	N -ST	N -ST	N -ST	N -ST
Inner Temperature	Chiller (2-10ºC)	Chiller (2-10ºC)	Chiller (2-10ºC)	Chiller (2-10ºC)	Chiller (2-10ºC)	Chiller (2-10ºC)
Input power	630	630	650	650	650	650
Energy (Kw/24hrs)	6.5	6.8	6.8	7.15	6.8	7.15
Net Capacity	1074	943	1101	950	1245	1093
Product Dimension WxDxH(mm)	1200*750*2020	1200*730*2020	1375*680*2020	1375*660*2020	1375*750*2020	1375*730*2020
Package Dimension	1245*775*2085	1245*775*2085	1420*705*2085	1420*685*2085	1420*775*2085	1420*755*2085
Gross weight(kg)	154	154	180	180	180	180
20'GP/40'HQ	13/27	13/28	12/24	12/24	12/24	12/24
Door type	2 Hinged,self-closing	2 Sliding,self-closing	2 Sliding,self-closing	2 Hinged,self-closing	2 Sliding,self-closing	2 Hinged,self-closing
Glass Door	2 layers with one in tempered glass	2 layers with one in tempered glass	2 layers with one in tempered glass	2 layers with one in tempered glass	2 layers with one in tempered glass	2 layers with one in tempered glass
Cabinet	White,Pre-coated plate	White,Pre-coated plate	White,Pre-coated plate	White,Pre-coated plate	White,Pre-coated plate	White,Pre-coated plate
Inside walls	White, powder coating plate	White, powder coating plate	White, powder coating plate	White, powder coating plate	White, powder coating plate	White, powder coating plate
Door handle	Extruded,plastic	Extruded,plastic	Extruded,plastic	Extruded,plastic	Extruded,plastic	Extruded,plastic
Branding	With sticker on canopy and teo sides of body	With sticker on canopy and teo sides of body	With sticker on canopy and teo sides of body	With sticker on canopy and teo sides of body	With sticker on canopy and teo sides of body	With sticker on canopy and teo sides of body
Compressor	Cubigel	Cubigel	Cubigel	Cubigel	Cubigel	Cubigel
Cooling system	Fan cooling	Fan cooling	Fan cooling	Fan cooling	Fan cooling	Fan cooling
Dafrosting	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic
Evaporator	Aluminum fin	Aluminum fin	Aluminum fin	Aluminum fin	Aluminum fin	Aluminum fin
Evaporator fan motor	2pcs	2pcs	2pcs	2pcs	2pcs	2pcs
Condenser	Steel wire	Steel wire	Steel wire	Steel wire	Steel wire	Steel wire
Condenser fan motor	2pcs	2pcs	2pcs	2pcs	2pcs	2pcs
Light	2*verticality LED,1*canopy LED	2*verticality LED,1*canopy LED	2*verticality LED,1*canopy LED	2*verticality LED,1*canopy LED	2*verticality LED,1*canopy LED	2*verticality LED,1*canopy LED
Light Switch	Yes	Yes	Yes	Yes	Yes	Yes
Temperature controller	Digital	Digital	Digital	Digital	Digital	Digital
Water tray	Self-evaporation	Self-evaporation	Self-evaporation	Self-evaporation	Self-evaporation	Self-evaporation
Castor	4pcs,2 with brake	4pcs,2 with brake	4pcs,2 with brake	4pcs,2 with brake	4pcs,2 with brake	4pcs,2 with brake
Shelf(Material/No.)	Reinforced wire shelf,8pcs	Reinforced wire shelf,8pcs	Reinforced wire shelf,8pcs	Reinforced wire shelf,8pcs	Reinforced wire shelf,8pcs	Reinforced wire shelf,8pcs

Remarks and conditions:
1) MOQ: 1x40'HQ ,Maximum two models mixed in one container.20GP charge $250/container FOB local cost
2) Payment: 30% T/T before production and balance before loading;
3) Delivery time: around 45 days after payment and artwork confirmation;
4) Warranty: 3 years for compressor and 1 year for rest parts, 1% free spare parts against order qty.

Export Packing:

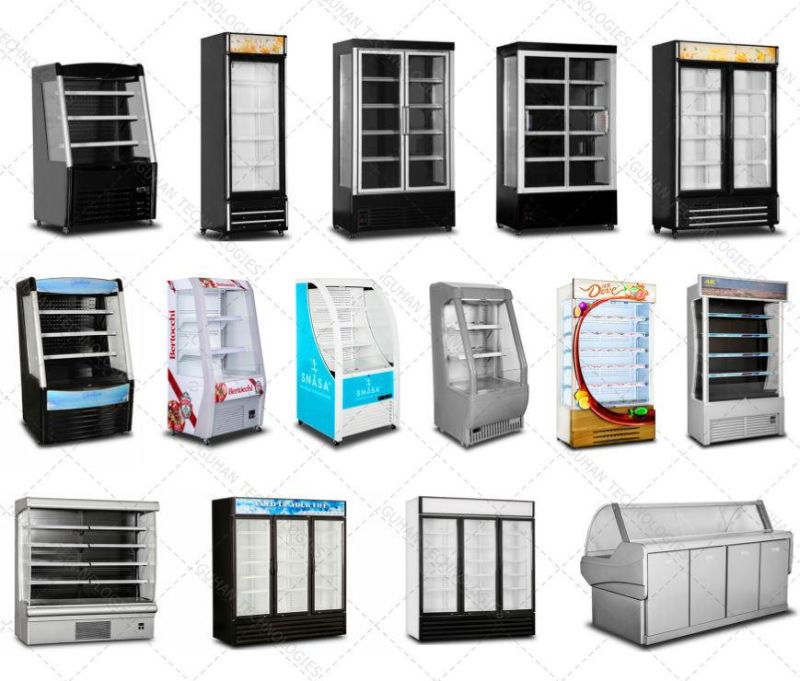

OTHER HOT MODELS


CETIFICATE

FAQ

What is your MOQ?
Despite a general MOQ of full container load, AOLIKE have flexible MOQ requirement to different products, please consult with our staff.

How long is your lead time / delivery time?
Lead time is around 4 weeks after deposit
payment for a standard specification order.

How can I pay/ What forms of payment do you accept?
You can pay by TT, WestUnion, LC, DP, Credit Card, Check etc. We accept majority currency like USD, EUR, CNY, CHF,HKD, GBP etc.

What are the terms of payment?
30% deposit in advance, balance before delivery.

Do you accept Documentary of Credit (DC) /Letter of Credit (LC) / Documents against Payment (DP)?
Yes. We accept LC at sight ,deffer LC , DP with deposit.

Can I cancel order after payment?
No. Once order is confirmed, we start purchase immediately. Order cancellation may cause partially or complete lost to your deposit.

How do you ship? Where do you ship?
We mainly ship goods by containers from SHANGHAI port, the biggest sea port in CHINA. We can delivery Less than Container Load order by truck to designated warehouse as well.

How do you pack the fridge? Is it strong enough?
Our products are applied with strong and reliable seaworthy packaging which as been testified from our long time export expirence.
