• Model NO.：CTF-80
• Temperature Type：Single-temperature
• Defrost Type：Frost-Free
• Function：Freezing
• Certification：CE, RoHS, CB, ETL
• Voltage/Frequency：220V,50Hz,60Hz,110V,60Hz
• Refrigerant：R404A
• Temperature Range：≤-22ºC
• Glass Door：Three Floor Glass Door with Heater
• Compressor：Kk
• Factory Certificate：ISO9001 ISO14001
• Transport Package：Carton Box
• Specification：466× 465× 998
• Trademark：APEX or OEM
• Origin：Guangdong China
• HS Code：8418500000
• Production Capacity：150000PC,Year

Basic Info.

Model NO. CTF-80 Temperature Type Single-temperature Defrost Type Frost-Free Function Freezing Certification CE, RoHS, CB, ETL Voltage/Frequency 220V/50Hz/60Hz/110V/60Hz Refrigerant R404A Temperature Range ≤-22ºC Glass Door Three Floor Glass Door with Heater Compressor Kk Factory Certificate ISO9001 ISO14001 Transport Package Carton Box Specification 466× 465× 998 Trademark APEX or OEM Origin Guangdong China HS Code 8418500000 Production Capacity 150000PC/Year

Product Description

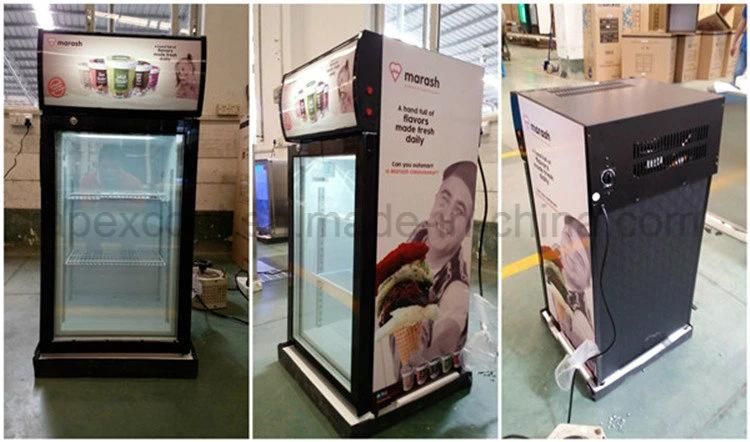

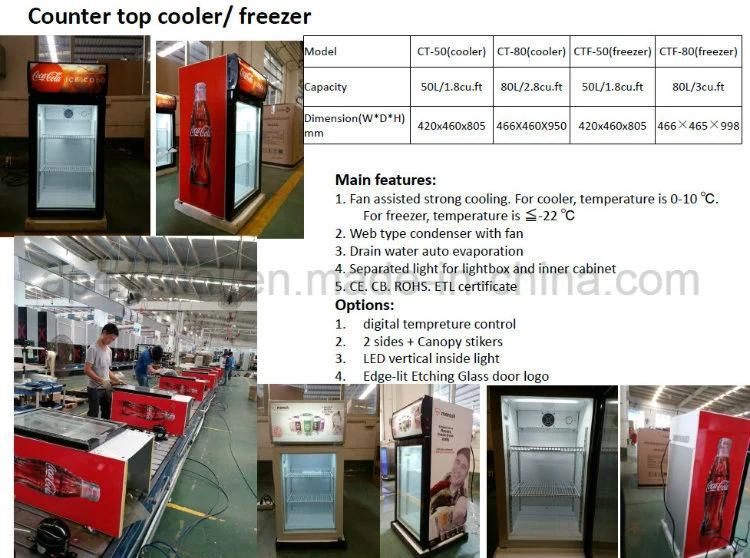

Ice cream refrigerator    Ice cream showcase gelato freezer
Main feature
1,fan assisted strong cooling,-22'C
2,web type condenser with fan
3, 4 adjustable feet,automatic closing door
4, drain water auto evaporation
5,separated light for lightbox and inner cabinet

Option
1, Sticker
2, LED light
3, Digital thermostat
4, Edge-lit Etching Glass door logo
5, aluminum door frame

Basic information

Model	CTF-50	CTF-80
Capacity	50L/1.8cu.ft	80L/3cu.ft
Dimension(W*D*H)mm	420x460x805	466×465×998
Packing Dimension(mm)	460x505x885	510×505×1080
Voltage/frequency	220V/50Hz	220V/50Hz
Refrigerant	R404a	R404a
Temperature range	≤-22ºC	≤-22ºC
Out/InnerMaterial	Prepainted Galvanized Steel/ Prepainted aluminum  (standard color:white)	Prepainted Galvanized Steel/Prepainted aluminum  (standard color:white)
Max.Ambinet Tempreture/Humidity	32/65	32/65
Cooling type	dynamic cooling	dynamic cooling
Glass door	Three floor glass door with heater	Three floor glass door with heater
Shelf Number	2	2 OR 3
Gross /Net weight(KGS)	25/27	35/40
Loading Qty(20gp/40GP/40HQ)	140/295/345	88/184/184

Remarks and conditions
1) Price Term: FOB China, base on 220V/50,60Hz,  110V60Hz with extral cost.
2) MOQ: 1x20'GP ,Maxmore two model mixed in one container.20GP charge $250/container FOB local cost
3) Payment: 30% T/T before production and balance before loading;
4) Delivery time: around 35 days after payment and artwork confirmation;
5) Warranty: 3 years for compressor and 1 year for rest parts, 1% free spare parts against order qty.
6) Quoation validity: 35 days after issue
